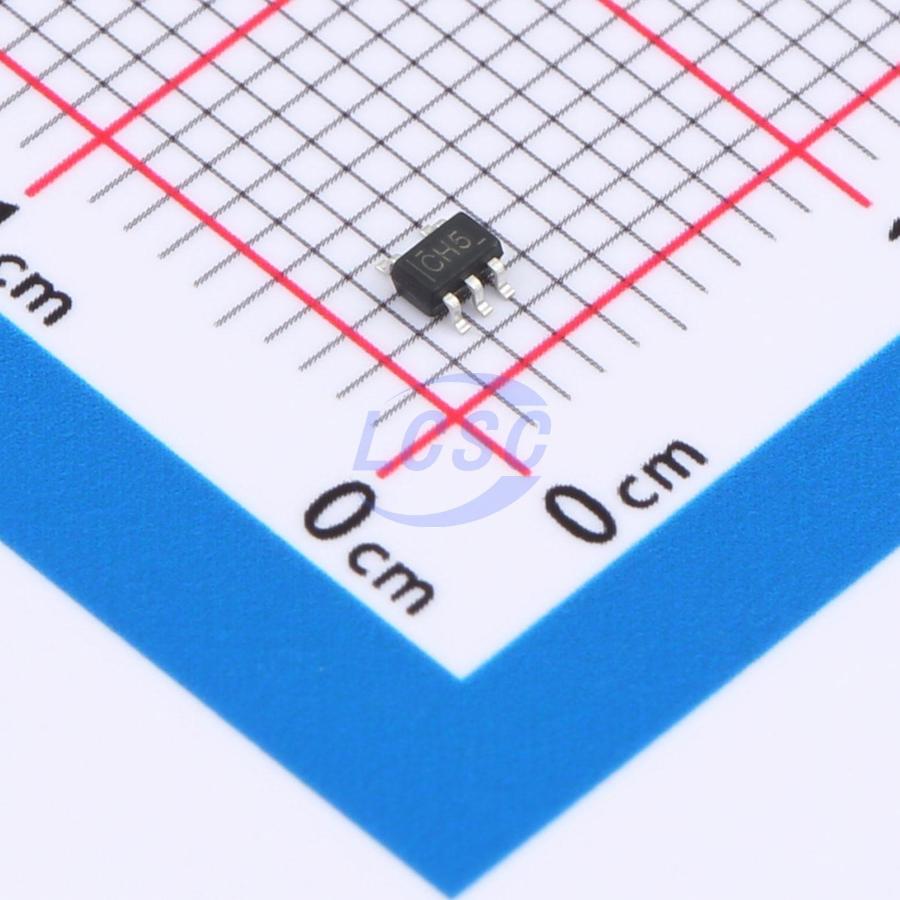

SN74LVC1G86DCKR-MS

10uA 1.65V~5.5V 3.7ns@3.3V,50pF SC-70-5 Gates and Inverters

SC-70-5RoHSActive

SN74LVC1G86DBVR-MS/SN74LVC1G86DCKR-MS Single 2-Input XOR Gate, Operating Voltage 1.65V to 5.5V

Manufacturer: MSKSEMI
Manufacturer part #: SN74LVC1G86DCKR-MS
Store part #: C30602468
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,440 in stock

#C30602468

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
10+	₹7.22	₹72.20
100+	₹5.72	₹572.00
300+	₹4.96	₹1,488.00
1,000+	₹4.39	₹4,390.00
5,000+	₹3.94	₹19,700.00
10,000+	₹3.70	₹37,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.22

₹72.20

excl. GST

₹85.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G86DCKR-MS

₹72.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Logic Family: 74LVC
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 550mV
Propagation Delay: 3.7ns@3.3V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview
