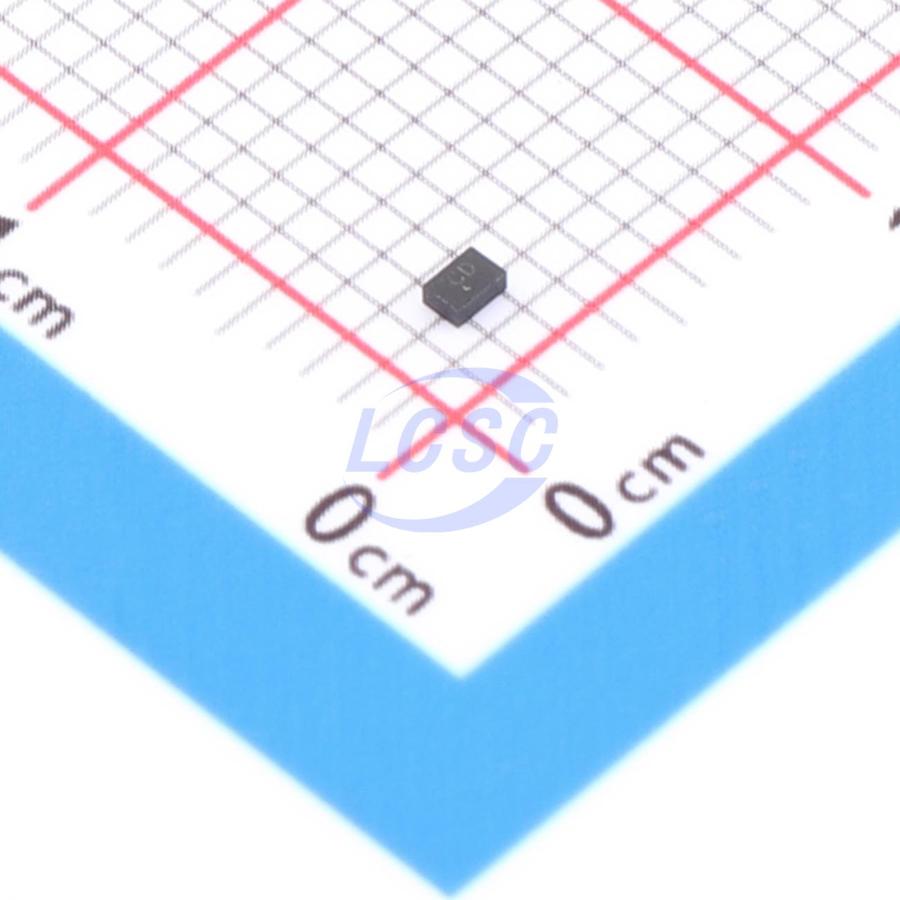

SN74LVC1GU04DRYR

10uA 1.65V~5.5V 1 3.5ns@5V,50pF SON-6(1x1.4) Gates and Inverters RoHS

SON-6(1x1.4)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: SN74LVC1GU04DRYR
Store part #: C2872727
Package / case: SON-6(1x1.4)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,395 in stock

#C2872727

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹30.23	₹151.15
50+	₹23.72	₹1,186.00
150+	₹20.56	₹3,084.00
500+	₹17.73	₹8,865.00
2,500+	₹16.95	₹42,375.00
5,000+	₹16.48	₹82,400.00

Quantity (min 5, multiples of 5)

5 × ₹30.23

₹151.15

excl. GST

₹178.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1GU04DRYR

₹151.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Power shutdown protection
Input Logic Level - High: 1.24V~4.13V
Input Logic Level - Low: 410mV~1.38V
Logic Family: 74LVC
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1
Current - Output High(IOH): 32mA
Propagation Delay: 3.5ns@5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.129 g

Overview

This single inverter gate is designed for 1.65-V to 5.5-V CC operation. The SN74LVC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y = A̅. NanoFree package technology is a major breakthrough in device packaging concepts, using the die as the package.

Applications

AV Receivers
Blu-ray Players and Home Theaters
DVD Recorders and Players
Desktop or Notebook PCs
Digital Radio or Internet Radio Players
Digital Video Cameras (DVC)
Embedded PCs
GPS: Personal Navigation Devices
Mobile Internet Devices
Network Projector Front-Ends
Portable Media Players
Pro Audio Mixers
Smoke Detectors
Solid-State Drive (SSD): Enterprise
High-Definition (HDTV) Tablets: Enterprise
Audio Docks: Portable
DLP Front Projection Systems
DVR and DVS
Digital Picture Frame (DPF)
Digital Still Cameras

Key features

Available in the NanoFree Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Unbuffered Output
Maximum tpd of 3.7 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
±24-mA Output Drive at 3.3 V
Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
