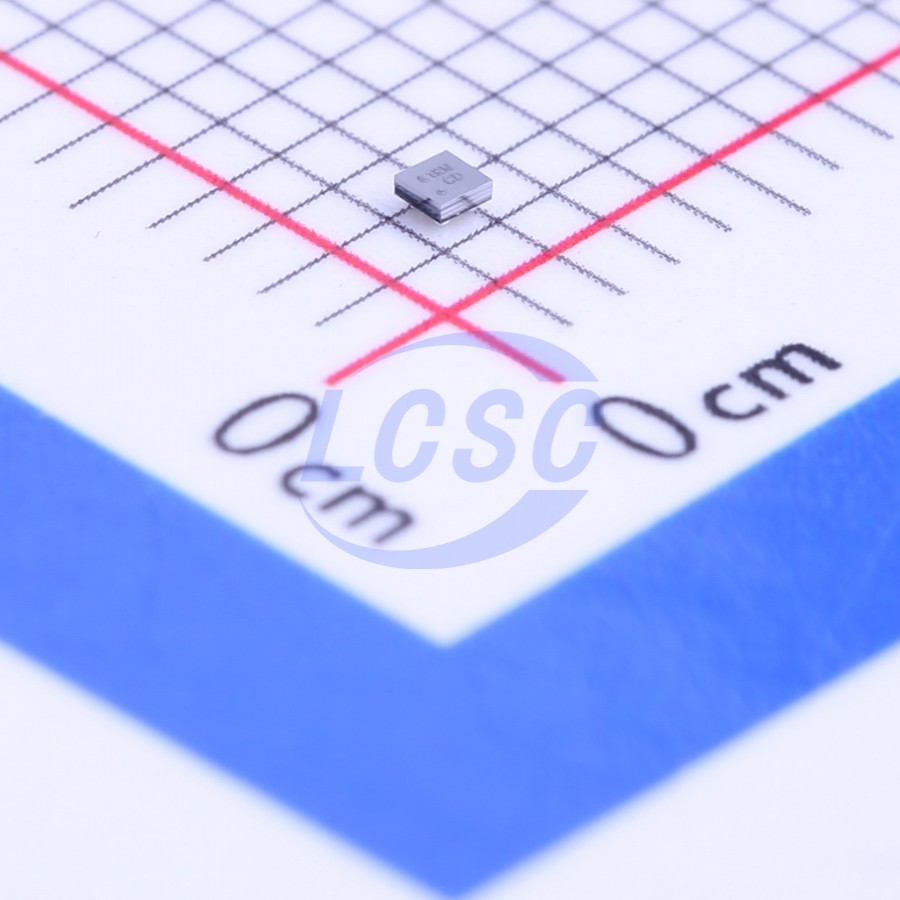

SN74LVC1GU04YZVR
10uA 1.65V~5.5V 1 3ns@5V,50pF DSBGA-4 Gates and Inverters RoHS
DSBGA-4ROHS CompliantActive
Single Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1GU04YZVR
- Store part #
- C134103
- Package / case
- DSBGA-4
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C134103
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.06 | ₹100.30 |
| 50+ | ₹17.53 | ₹876.50 |
| 150+ | ₹16.45 | ₹2,467.50 |
| 500+ | ₹13.86 | ₹6,930.00 |
| 3,000+ | ₹13.26 | ₹39,780.00 |
| 6,000+ | ₹12.89 | ₹77,340.00 |
5 × ₹20.06
₹100.30
excl. GST
₹118.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1GU04YZVR
₹100.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74LVC
- Input Logic Level - Low
- 410mV~1.38V
- Input Logic Level - High
- 1.24V~4.13V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
- This single inverter gate is designed for 1.65-V to 5.5-V CC operation. - The SN74LVC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y = A̅. - NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Applications
- AV Receivers
- Blu-ray Players and Home Theaters
- DVD Recorders and Players
- Desktop or Notebook PCs
- Digital Radio or Internet Radio Players
- Digital Video Cameras (DVC)
- Embedded PCs
- GPS: Personal Navigation Devices
- Mobile Internet Devices
- Network Projector Front-Ends
- Portable Media Players
- Pro Audio Mixers
- Smoke Detectors
- Solid-State Drive (SSD): Enterprise
- High-Definition (HDTV) Tablets: Enterprise
- Audio Docks: Portable
- DLP Front Projection Systems
- DVR and DVS
- Digital Picture Frame (DPF)
- Digital Still Cameras
Key features
- Available in the Texas Instruments NanoFree Package
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Unbuffered Output
- Maximum tpd of 3.7 ns at 3.3 V
- Low Power Consumption, 10-μA Maximum ICC
- ±24-mA Output Drive at 3.3 V
- |off| Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
