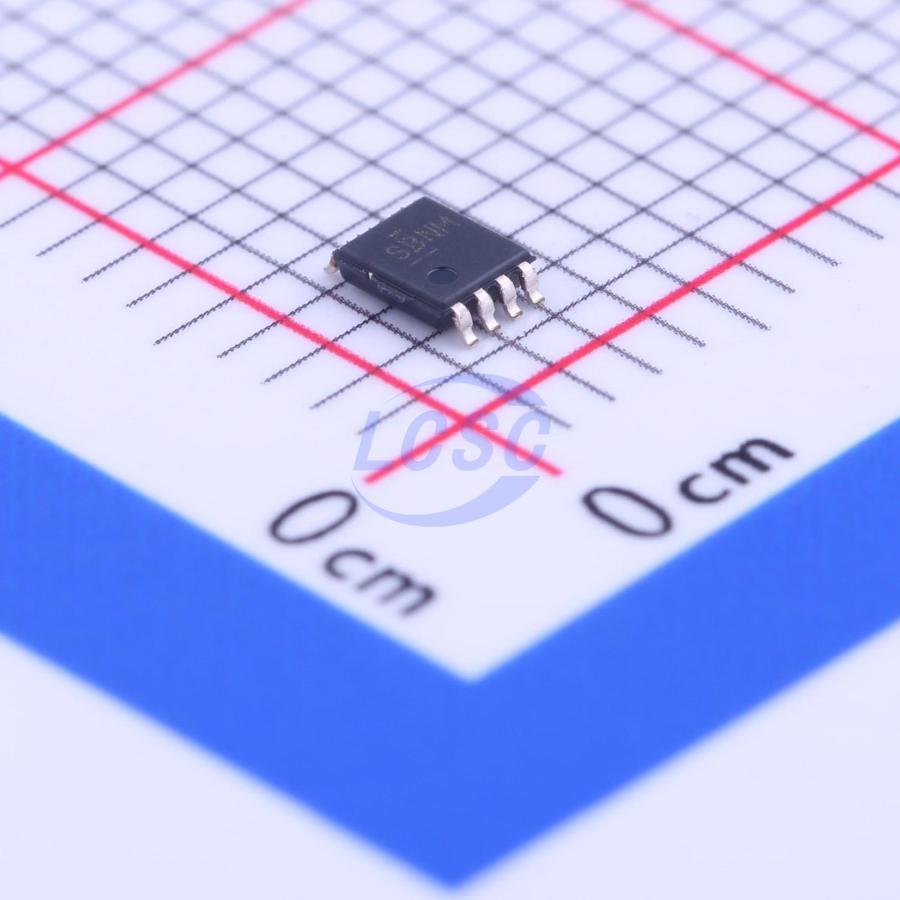

SN74LVC2G08MDCUREP

10uA 1.65V~5.5V 4.8ns@5V,50pF VSON-8(2.3x2.3) Gates and Inverters RoHS

VSON-8(2.3x2.3)ROHS3 CompliantActive

DUAL 2-INPUT POSITIVE-AND GATE

Manufacturer: TI
Manufacturer part #: SN74LVC2G08MDCUREP
Store part #: C18150
Package / case: VSON-8(2.3x2.3)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,557 in stock

#C18150

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹339.89	₹339.89
10+	₹285.23	₹2,852.30
30+	₹250.96	₹7,528.80
100+	₹215.82	₹21,582.00
500+	₹199.77	₹99,885.00
1,000+	₹193.05	₹1,93,050.00

Quantity (min 1)

1 × ₹339.89

₹339.89

excl. GST

₹401.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC2G08MDCUREP

₹339.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -55℃~+125℃
Logic Family: 74LVC Series
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 2;2
Current - Output High(IOH): 24mA
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 4.8ns@5V,50pF
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

This dual 2-input positive-AND gate is designed for 1.65-V to 5.5-V Vcc operation. The SN74LVC2G08 performs the Boolean function Y = A • B or Y = ¬(¬A + ¬B) in positive logic. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

Controlled Baseline
Enhanced Diminishing Manufacturing Sources (DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree
Supports 5-V Vcc Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 5.7 ns at 3.3 V
Low Power Consumption, 10 μA Max Icc
±24 mA Output Drive at 3.3 V
Typical VoLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25°C
Typical V0HV (Output VoH Undershoot) > 2 V at VCC = 3.3V, TA = 25°C
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD22 - 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101)
