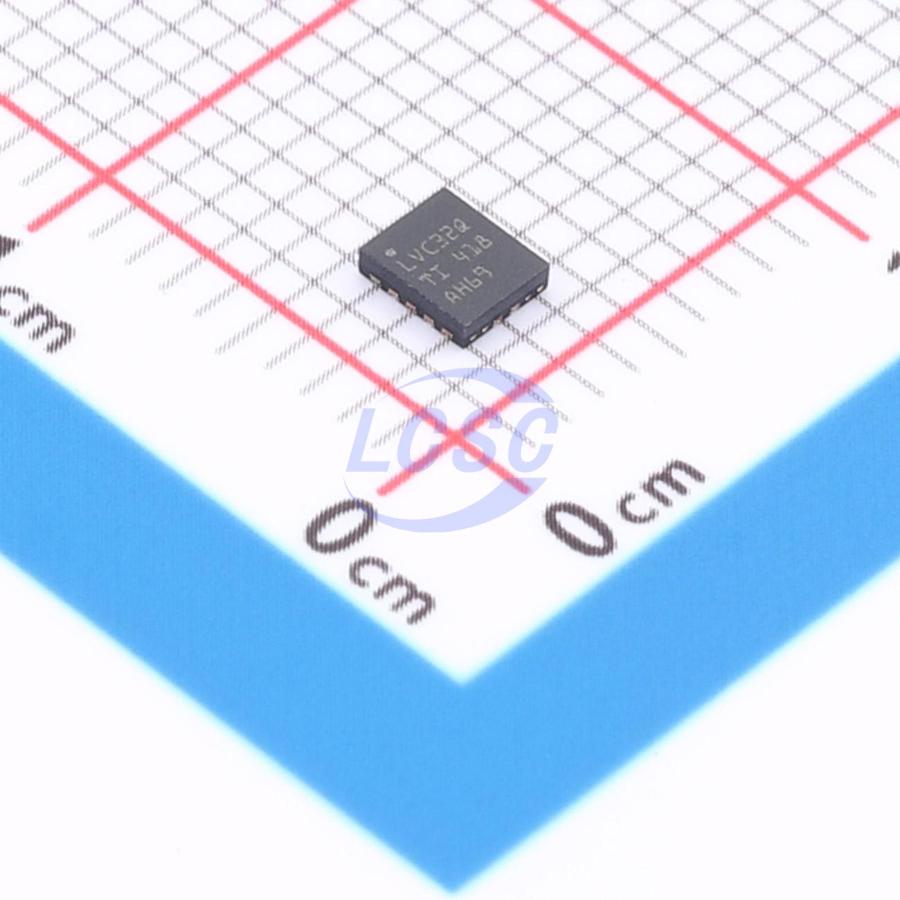

SN74LVC32AWBQARQ1
10uA 2V~3.6V 3.8ns@3.3V,50pF WQFN-14(2.5x3) Gates and Inverters RoHS
WQFN-14(2.5x3)ROHS CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC32AWBQARQ1
- Store part #
- C30682852
- Package / case
- WQFN-14(2.5x3)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C30682852
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.90 | ₹49.90 |
| 10+ | ₹48.66 | ₹486.60 |
| 30+ | ₹47.83 | ₹1,434.90 |
| 100+ | ₹47.01 | ₹4,701.00 |
1 × ₹49.90
₹49.90
excl. GST
₹58.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC32AWBQARQ1
₹49.90 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 2.2V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~3.6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Propagation Delay
- 3.8ns@3.3V,50pF
- Output Logic Level - Low
- 200mV;400mV;550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.077 g
Overview
The SN74LVC32A-Q1 quad 2-input positive-OR gate is designed for operation with a VCC supply voltage range of 2.7V to 3.6V. The device performs the Boolean function Y = A + B or Y = NOT(NOT A AND NOT B) in positive logic. Inputs can be driven by 3.3V or 5V devices, allowing the device to be used as a level translator in mixed 3.3V/5V system environments.
Key features
- Meets automotive application standards
- Operating voltage range: 2V to 3.6V
- Inputs tolerant up to 5.5V
- Maximum propagation delay (tpd) of 3.8ns at 3.3V
- Typical output ground bounce (VOLP) less than 0.8V at VCC = 3.3V, TA = 25°C
- Typical output high undershoot (VOHV) greater than 2V at VCC = 3.3V, TA = 25°C
