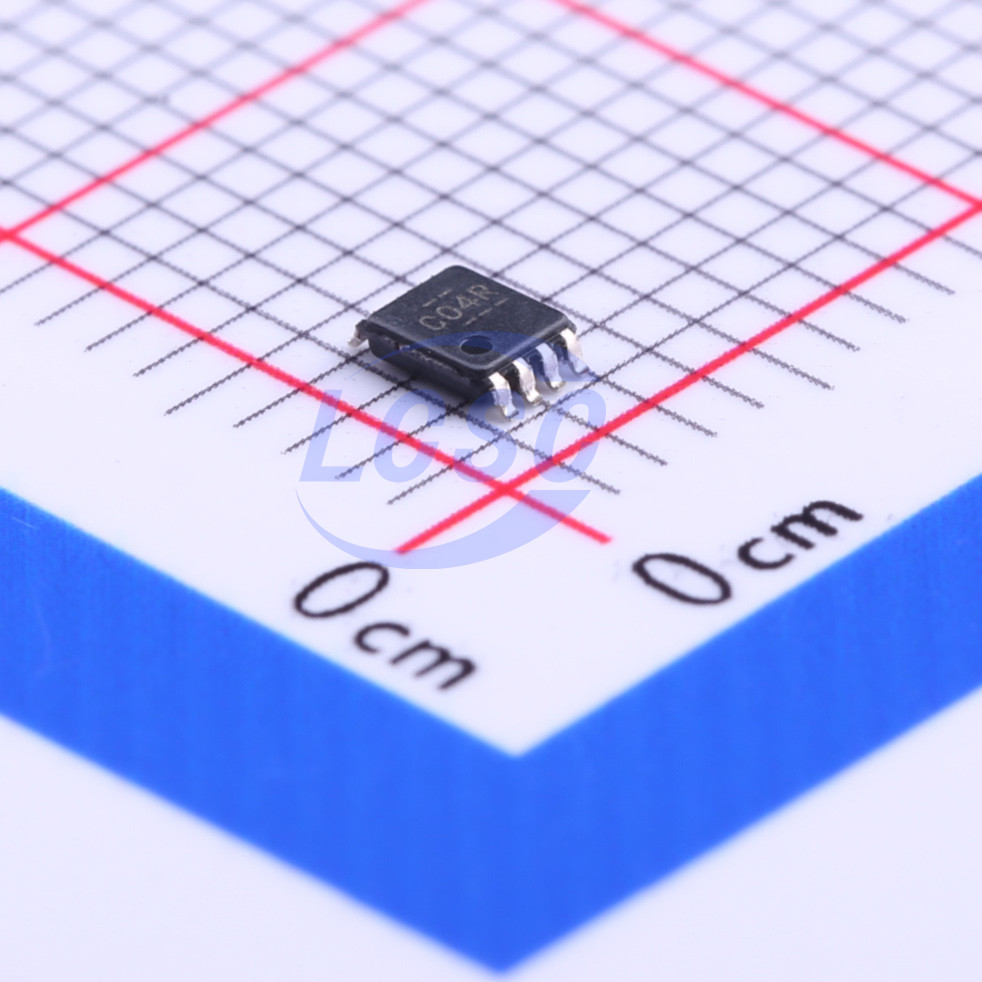

SN74LVC3G04DCUR

10uA 1.65V~5.5V 4.1ns@3.3V,50pF VSSOP-8 Gates and Inverters RoHS

VSSOP-8ROHS3 CompliantActive

Triple Inverter Gate

Manufacturer: TI
Manufacturer part #: SN74LVC3G04DCUR
Store part #: C153799
Package / case: VSSOP-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,960 in stock

#C153799

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹60.94	₹60.94
10+	₹47.88	₹478.80
30+	₹41.34	₹1,240.20
100+	₹35.69	₹3,569.00
500+	₹34.17	₹17,085.00
1,000+	₹33.30	₹33,300.00

Quantity (min 1)

1 × ₹60.94

₹60.94

excl. GST

₹71.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC3G04DCUR

₹60.94 for 1 + GST

Specifications

Input Logic Level - High: 1.7V;2V
Logic Family: 74LVC
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.4V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 32mA
Propagation Delay: 4.1ns@3.3V,50pF
Output Logic Level - Low: 750mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

This triple inverter is designed for 1.65-V to 5.5–VCC operation. The SN74LVC3G04 device performs the Boolean function Y = A̅. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

Available in the Texas Instruments NanoFree Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 4.1 ns at 3.3 V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3 V
Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25°C
Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3V, TA = 25°C
Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate Inputs From a Max of 5.5 V Down to the VCC Level
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
