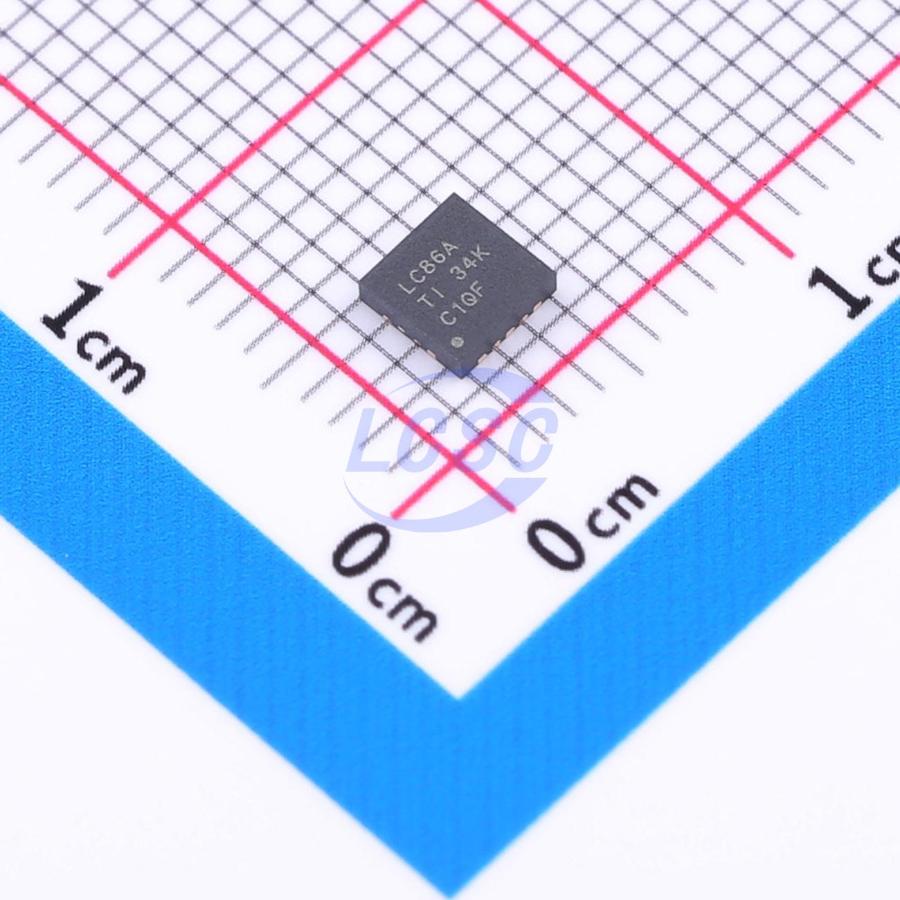

SN74LVC86ARGYR

The SN54LVC86A quadruple 2-input exclusive-OR gate is designed for 2.7 V to 3.6 V VCC operation, and the SN74LVC86A quadruple 2-input exclusive-OR gate is designed for 1.65 V to 3.6 V VCC operation. The 'LVC86A devices perform the Boolean function Y = A ⊕ B or Y = A(overline)B + A B(overline) in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V system environment.

Applications

• Voltage level translation in mixed 3.3V/5V systems
• True/complement element: when one input is LOW, the output non-invertingly reproduces the other input signal; when one input is HIGH, the output invertingly reproduces the other input signal
• Logic identity detector: output is LOW when all inputs are at the same logic level
• Even parity generator: output is LOW when an even number of inputs are active
• Odd parity generator: output is HIGH when an odd number of inputs are active
• Various XOR logic-related applications

Key features

• Operate From 1.65 V to 3.6 V
• Specified From -40℃ to 85℃, -40℃ to 125℃, and -55℃ to 125℃
• Inputs Accept Voltages to 5.5 V Max
• tpd of 4.6 ns at 3.3 V Typical
• VoLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• VoHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Latch-Up Performance Exceeds ±50 mA Per JESD 17
• ESD Protection Exceeds JESD 22
• 2000 V Human-Body Model (A114-A)
• 200 V Machine Model (A115-A)
• 1000 V Charged-Device Model (C101)
