SiliupDatasheet (PDF)

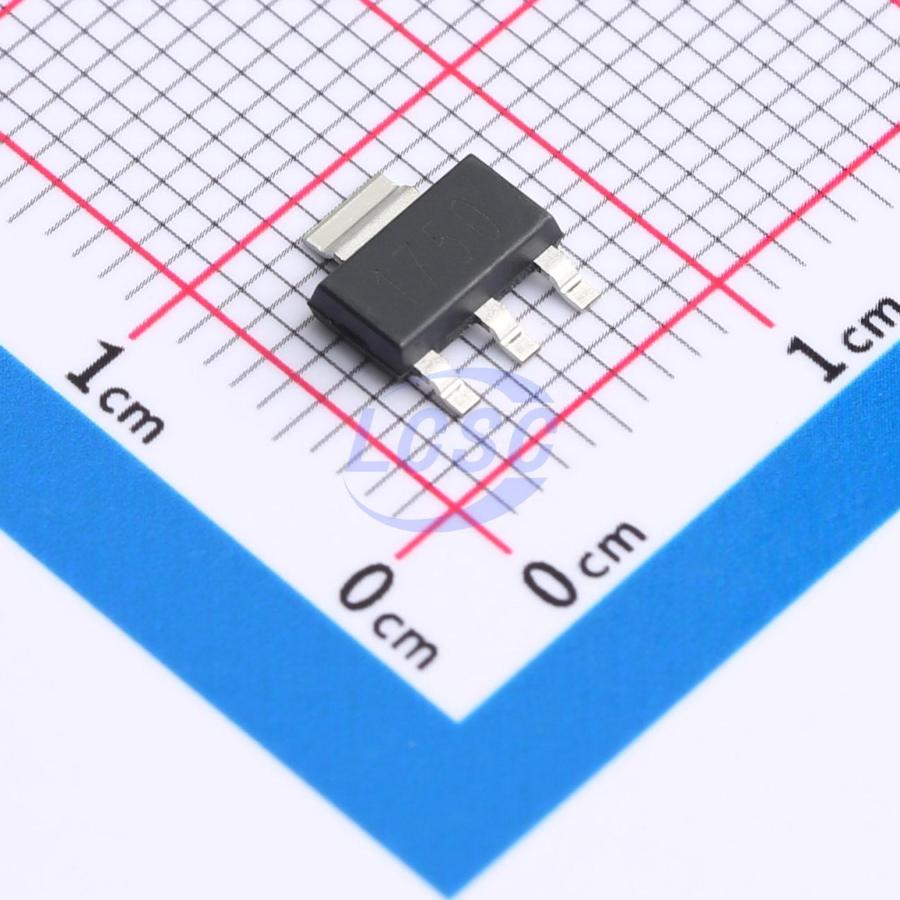

SP1117AV50TC
Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1A, Bipolar Linear Regulator
- Manufacturer
- Siliup
- Manufacturer part #
- SP1117AV50TC
- Store part #
- C41355112
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,970 in stock
#C41355112
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.07 | ₹40.70 |
| 100+ | ₹3.57 | ₹357.00 |
| 300+ | ₹3.32 | ₹996.00 |
| 1,000+ | ₹3.12 | ₹3,120.00 |
| 5,000+ | ₹3.04 | ₹15,200.00 |
| 10,000+ | ₹2.98 | ₹29,800.00 |
10 × ₹4.07
₹40.70
excl. GST
₹48.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP1117AV50TC
₹40.70 for 10 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.255 g
Overview
The SP1117A is a low dropout three-terminal regulator with a dropout of 1.2V at 1A output current. The SP1117A has been optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within 1%. On-chip thermal shutdown provides protection against a combination of high current and ambient temperature. The SP1117A is available in 1.8V, 2.5V and 3.3V versions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The SP1117A is available in the industry-standard SOT-223 power package.
Applications
- USB Device
- Add-on Card
- DVD Player
- PC Motherboard
Key features
- Low Dropout Voltage: 1.2V at 1A Output Current
- Output Noise from 10Hz to 10KHz: 0.003%
- PSRR at IOU = 300mA and f = 120Hz: 70dB
- Output Voltage Accuracy: 1%
- On-chip Thermal Shutdown
- Maximum Quiescent Current: IQMAX = 6mA
- Operation Junction Temperature: -40 to 125 °C
- OCP, OVP, OTP
