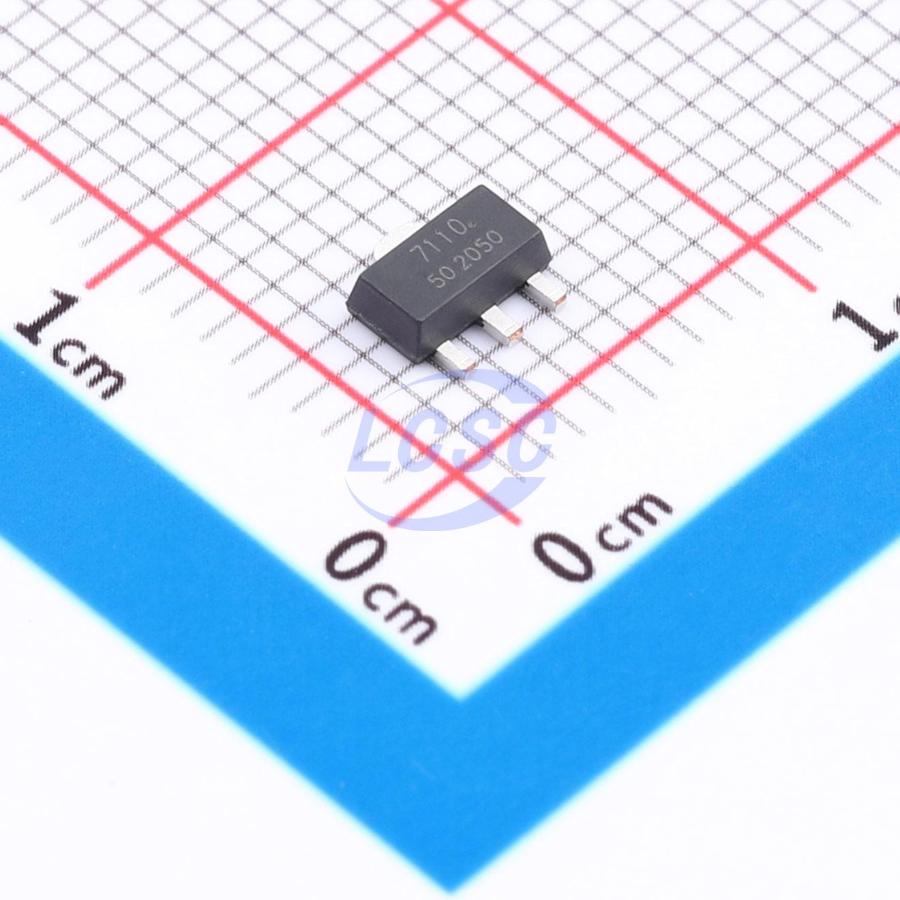

SP1117V50T8

The SP1117 series is a low dropout linear regulator with a 1.3V dropout voltage at 1A load current. Compared to competitors' 5mA, the SP1117 features an ultra-low quiescent current of only 1.8mA. In addition to fixed output voltage versions (1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the SP1117 also offers an adjustable version that provides 1.25V to 12V output voltage with only two external resistors. The SP1117 features thermal shutdown protection to ensure stability of the IC and power system. It employs trimming technology to guarantee output voltage accuracy within 2%. Other output voltage accuracies (e.g., 1%) are available upon request. The SP1117 is available in SOT-89-3L, SOT-223, and TO-252 power packages.

Applications

• Computer motherboard power management
• Graphics card power management
• LCD monitors
• LCD TVs
• DVD decoder boards
• ADSL modems
• Post-stage regulators in switching power supplies

Key features

• Maximum output current 1.1A (SOT-89-3L package)
• Maximum output current 1.4A (SOT-223, TO-252 package)
• Operating input voltage range: 30V max
• Line regulation: 0.03%/V (typical)
• Quiescent current: 1.8mA (SOT-89-3L package, typical)
• Quiescent current: 2mA (SOT-223, TO-252 package, typical)
• Load regulation: 0.2%/A (typical)
• Ambient temperature: -20°C ~ 85°C
