SiliupDatasheet (PDF)

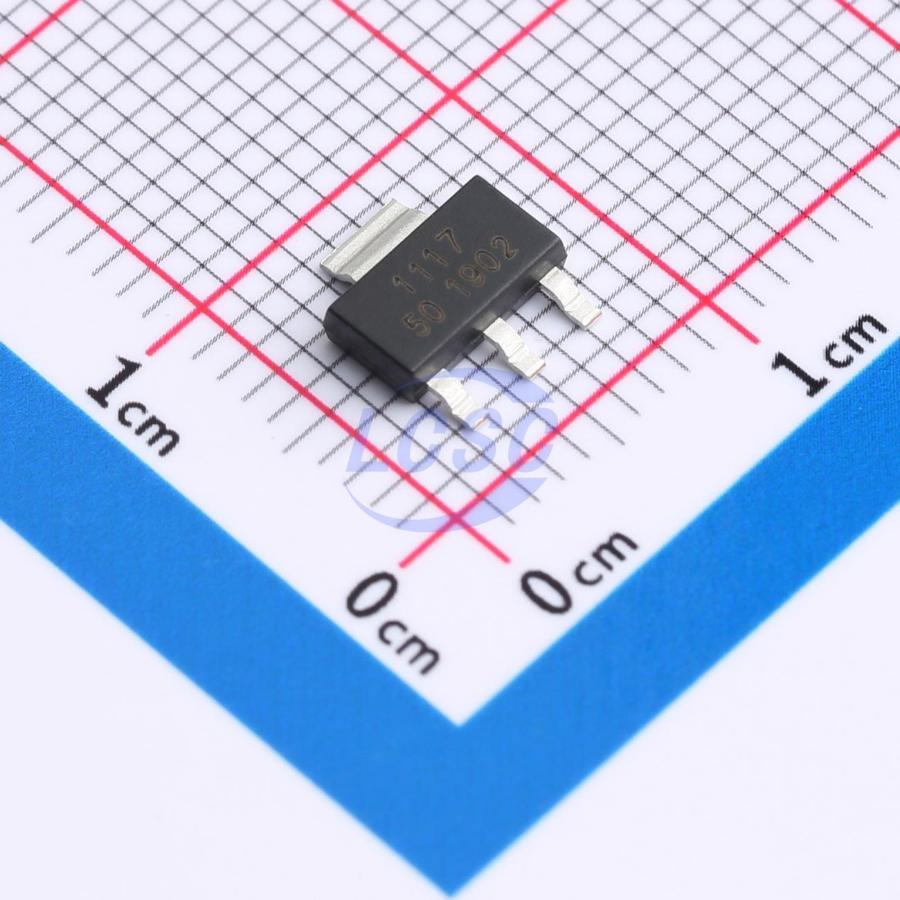

SP1117V50TC
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1A, Bipolar Linear Regulator
- Manufacturer
- Siliup
- Manufacturer part #
- SP1117V50TC
- Store part #
- C41355115
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C41355115
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.71 | ₹67.10 |
| 100+ | ₹5.29 | ₹529.00 |
| 300+ | ₹4.58 | ₹1,374.00 |
| 1,000+ | ₹4.04 | ₹4,040.00 |
| 5,000+ | ₹3.70 | ₹18,500.00 |
| 10,000+ | ₹3.49 | ₹34,900.00 |
10 × ₹6.71
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP1117V50TC
₹67.10 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1.4A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.263 g
Overview
The SP1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. SP1117 features a very low standby current 1.8mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, SP1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. SP1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. SP1117 is available in SOT-89-3L,SOT-223,TO-252 power package.
Applications
- Power Management for Computer Mother
- Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators For Switching Supplies
Key features
- Maximum output current is 1.1A(SOT-89-3L)
- Maximum output current is 1.4A(SOT-223,TO-252)
- Range of operation input voltage: Max 30V
- Line regulation: 0.03%N (typ.)
- Standby current: 1.8mA (SOT-89-3L, typ.)
- Standby current: 2mA (SOT-223,TO-252, typ.)
- Load regulation: 0.2%/A (typ.)
- Environment Temperature: -20°C~85°C
