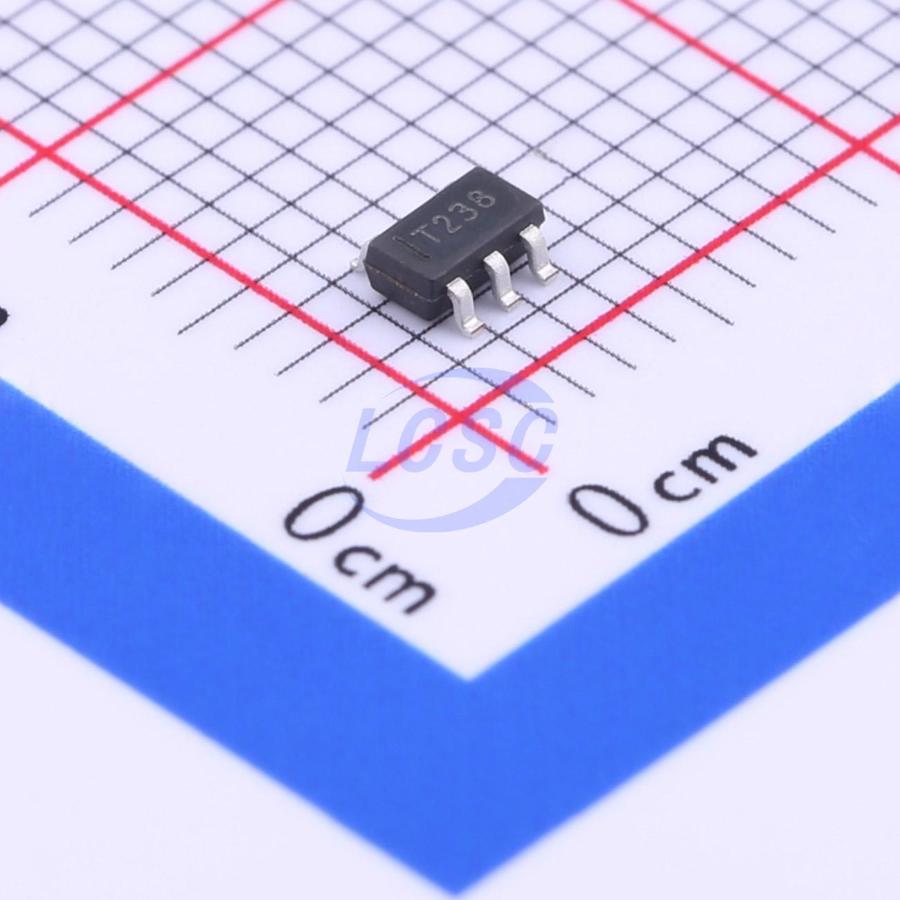

SP6205EM5-L-3-3/TR

The SP6203 and SP6205 are ultra low noise CMOS LDOs with very low dropout and ground current. The noise performance is achieved by means of an external bypass capacitor without sacrificing turn-on and turn-off speed critical to portable applications. Extremely stable and easy to use, these devices offer excellent PSRR and Line/Load regulation. Target applications include battery-powered equipment such as portable and wireless products. Regulators' ground current increases only slightly in dropout. Fast turn-on/turn-off enable control and an internal 30Ω pull down on output allows quick discharge of output even under no load conditions. Both LDOs are protected with current limit and thermal shutdown. The SP6205 is available in fixed & adjustable output voltage versions and come in an industry standard 5-pin SOT-23 and small 2X3mm 8-pin DFN packages. For SC-70 100mA CMOS LDO, SP6213 is available.

Applications

• Battery-Powered Systems
• Medical Equipments
• MP3/CD Players
• Digital Cameras

Key features

• 300mA/500mA Output Current
• SP6203: 300mA
• SP6205: 500mA
• Low Dropout Voltage: 0.6Ω PMOS FET
• 2.7V to 5.5V Input Voltage
• Fixed and Adjustable Output Voltage
• Accurate Output Voltage: 2% over Temp.
• 67dB Power Supply Rejection Ratio
• 12μV RMS Low Output Noise
• Unconditionally Stable with 1μF Ceramic
• Low Quiescent Current: 5μA
• Low Ground Current: 350μA at 500mA
• Fast Turn-On and Turn-Off: 60μs
• Very Good Load/Line Regulation: 0.07/0.04 %
• Current Limit and Thermal Protection
• RoHS Compliant “Green”/Halogen Free 5-Pin SOT23 and 8-Pin DFN Packages
