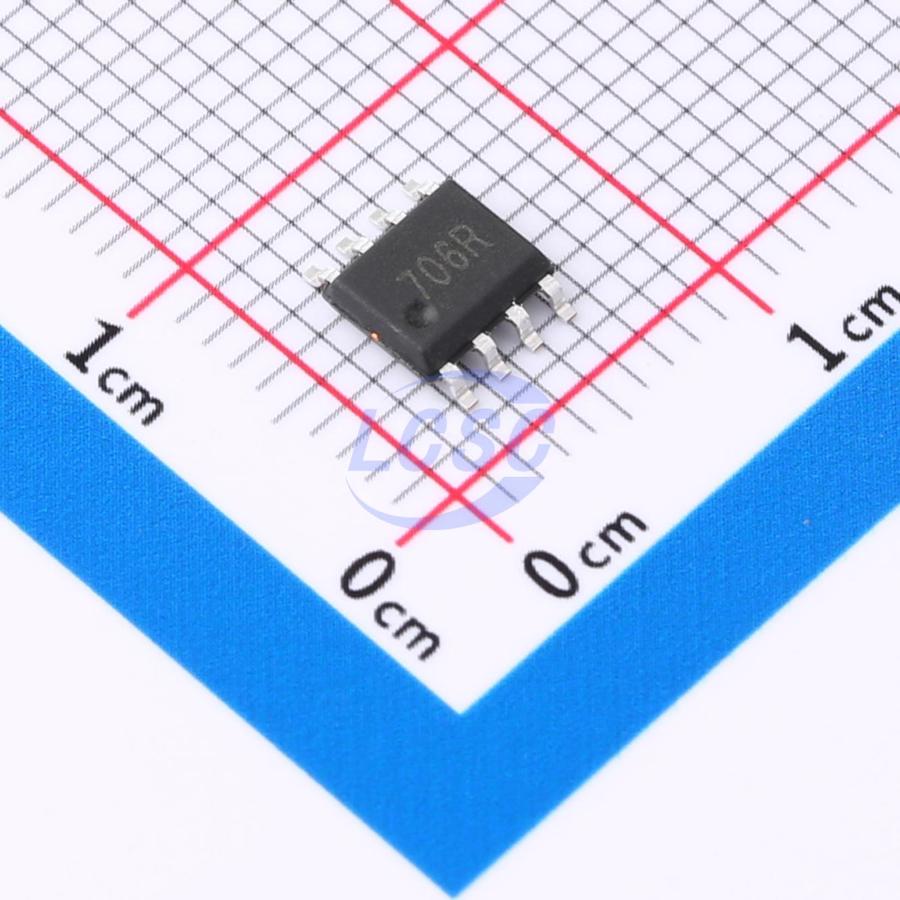

SP706REN-L-TP
Supervisor 1 Channel SOP-8
Supply Voltage Supervisor w/Watchdog Input and Manual Reset
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP706REN-L-TP
- Store part #
- C48886800
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,571 in stock
#C48886800
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.89 | ₹56.89 |
| 10+ | ₹45.03 | ₹450.30 |
| 30+ | ₹39.86 | ₹1,195.80 |
| 100+ | ₹33.62 | ₹3,362.00 |
| 500+ | ₹30.60 | ₹15,300.00 |
| 1,000+ | ₹29.09 | ₹29,090.00 |
1 × ₹56.89
₹56.89
excl. GST
₹67.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP706REN-L-TP
₹56.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 80uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.158 g
Overview
This series comprises cost-effective system power supply monitoring circuits designed to monitor power supplies in digital systems. They provide power supply monitoring circuitry that generates a reset output during power-up, power-down, and undervoltage conditions. The reset output remains asserted with VCC as low as 1V. An independent watchdog monitoring circuit is also provided; if the watchdog input is not toggled within 1.6 seconds, the circuit is activated. Additionally, a 1.25V threshold detector is included for power failure warning, battery low detection, or monitoring an additional supply. A low-active, debounced manual reset input is also included. In this series, an active-high reset replaces the watchdog timer. In this series, RESET is provided instead of RESET. All versions are available in a compact SOP-8 package.
Applications
- Computers
- Embedded systems
- Industrial equipment
- Smart instruments
- Programmable control
Key features
- Wide operating voltage range: 1V to 5.5V
- Guaranteed correct logic output at Vcc=1.0V
- 200ms reset pulse width
- Independent watchdog timer – 1.6s timeout
- Power supply transient immunity
- 80uA (typical) supply current
