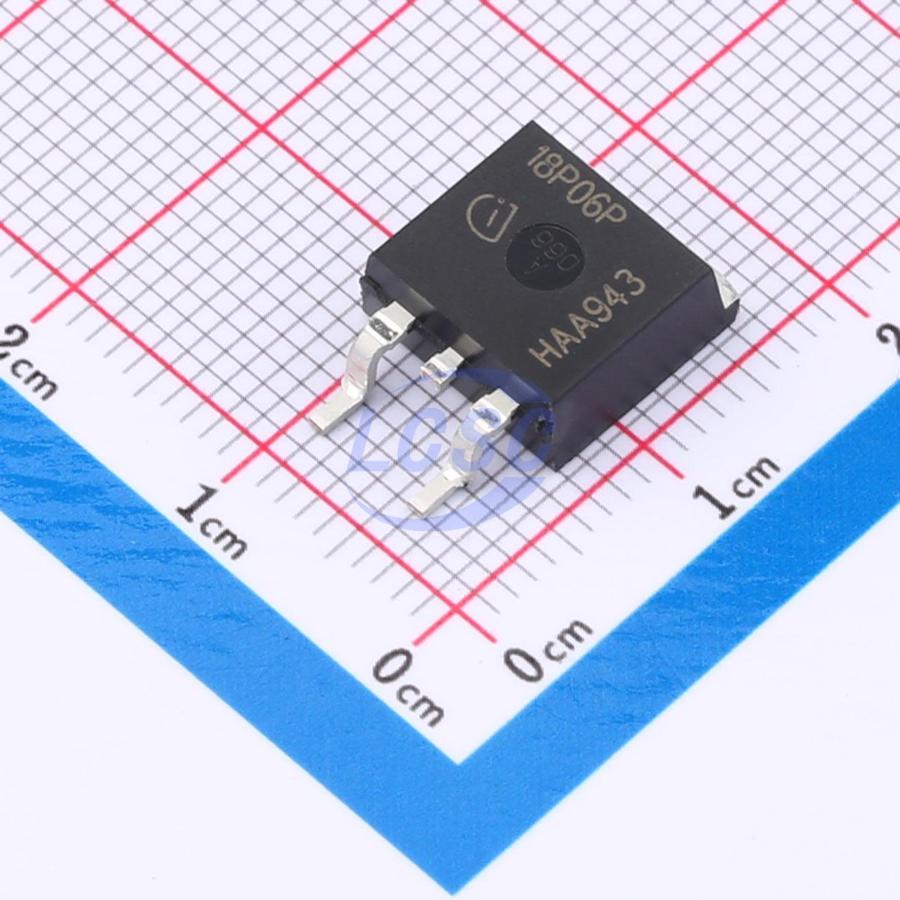

SPB18P06PGATMA1
81.1W 60V 18.7A 130mΩ@10V 1 P-Channel P-Channel TO-263-3 Single FETs, MOSFETs RoHS
TO-263-3ROHS3 CompliantActive
MOSFET P-CH 60V 18.7A TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- SPB18P06PGATMA1
- Store part #
- C3289216
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3289216
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.62 | ₹110.62 |
| 10+ | ₹108.22 | ₹1,082.20 |
| 30+ | ₹106.49 | ₹3,194.70 |
| 100+ | ₹104.74 | ₹10,474.00 |
1 × ₹110.62
₹110.62
excl. GST
₹130.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SPB18P06PGATMA1
₹110.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 860pF
- Pd - Power Dissipation
- 81.1W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 18.7A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 130mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.575 g
Overview
Key features
- P-Channel
- Enhancement Mode
- Avalanche Rated
- dv/dt Rated
- Operating Temperature up to 175°C
- Lead-Free Terminations; RoHS Compliant
- Halogen-Free per IEC61249-2-21
- Qualified to AEC Q101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPFQD7P06TM#C5246436TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,217 | ₹68.17 · 2,217 in stock | View |
 | IPB330P10NMATMA1#C3279158Infineon · TO-263-3 | Infineon | TO-263-3 | 1 | ₹244.07 · 1 in stock | View |
 | SPB80P06PG#C513097Infineon · TO-263-3 | Infineon | TO-263-3 | 500 | ₹1,104.89 · 500 in stock | View |
 | IPB720P15LMATMA1#C3279184Infineon · TO-263-3 | Infineon | TO-263-3 | 45 | ₹807.85 · 45 in stock | View |
 | IPB110P06LM#C3279229Infineon · TO-263-3 | Infineon | TO-263-3 | 121 | ₹440.90 · 121 in stock | View |
