InfineonDatasheet (PDF)

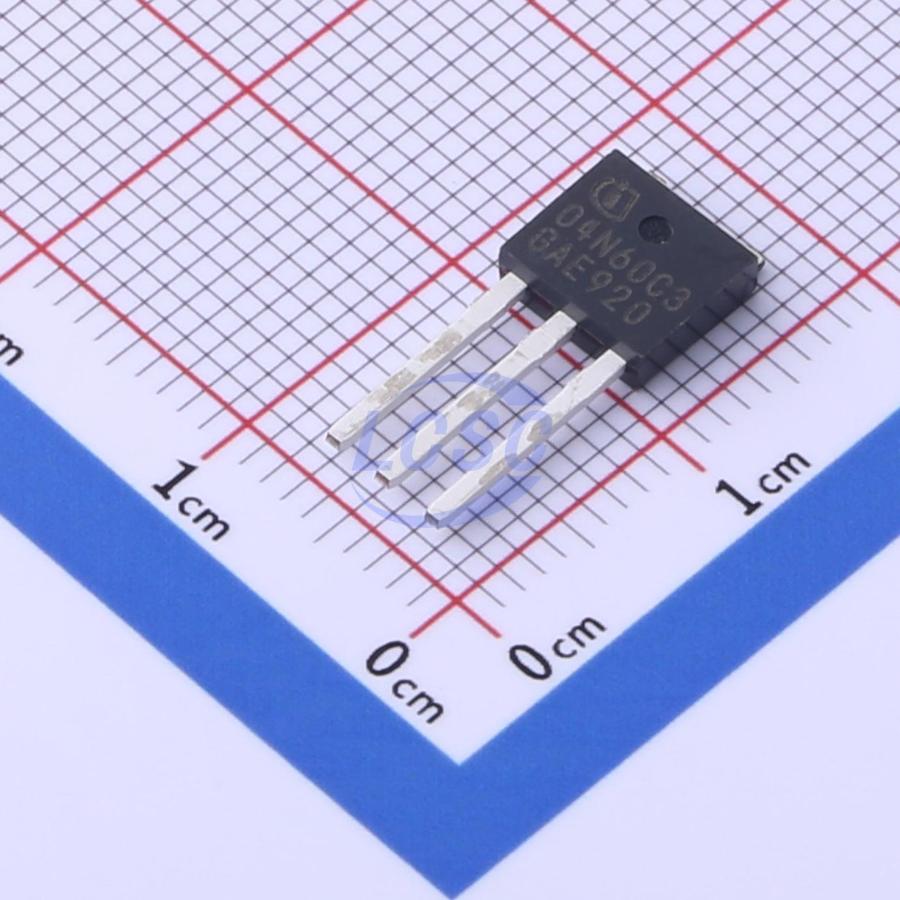

SPU04N60C3
650V 4.5A 50W Through Hole TO-251-3
TO-251-3ROHS CompliantActive
MOSFET 650V 4.5A TO-251-3
- Manufacturer
- Infineon
- Manufacturer part #
- SPU04N60C3
- Store part #
- C2841884
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2841884
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.31 | ₹194.31 |
| 10+ | ₹168.09 | ₹1,680.90 |
| 30+ | ₹153.47 | ₹4,604.10 |
| 75+ | ₹137.14 | ₹10,285.50 |
| 525+ | ₹130.04 | ₹68,271.00 |
| 975+ | ₹126.61 | ₹1,23,444.75 |
1 × ₹194.31
₹194.31
excl. GST
₹229.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
SPU04N60C3
₹194.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 160pF
- Ciss-Input Capacitance
- 490pF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 4.5A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 950mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.43 g
Overview
ME2309 is a P-channel logic-level enhancement-mode power MOSFET fabricated using high cell density DMOS trench technology. This high-density process is specifically designed to minimize on-resistance. These devices are particularly suited for low-voltage applications such as power management in mobile phones and laptops, as well as other battery-powered circuits requiring high-side switching and low inline power dissipation in compact surface-mount packages.
Applications
- Notebook PC power management - Portable devices - Battery-powered systems - DC/DC converters - Load switches - Digital cameras - LCD display inverters
Key features
- New revolutionary high voltage technology
- Ultra low gate charge
- Periodic avalanche rated
- Extreme dv/dt rated
- High peak current capability
- Improved transconductance
- Pb-free lead plating; RoHS compliant, available in Halogen free mold compound
- Fully qualified according to JEDEC for Industrial Applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WGU5N65SE#C7541453Wild Goose · TO-251 | Wild Goose | TO-251 | 1,820 | ₹22.29 · 1,820 in stock | View |
 | IPSA70R450P7SAKMA1#C3278976Infineon · TO-251-3 | Infineon | TO-251-3 | 5 | ₹260.87 · 5 in stock | View |
 | CMU80R1K2#C39840893Cmos · TO-251 | Cmos | TO-251 | 24 | ₹60.50 · 24 in stock | View |
 | IPU80R900P7#C531230Infineon · TO-251-3 | Infineon | TO-251-3 | 13 | ₹199.47 · 13 in stock | View |
 | 7NM70G-TMN2-T#C171512UTC · TO-251N | UTC | TO-251N | 1 | ₹63.48 · 1 in stock | View |
