MaxLinearDatasheet (PDF)

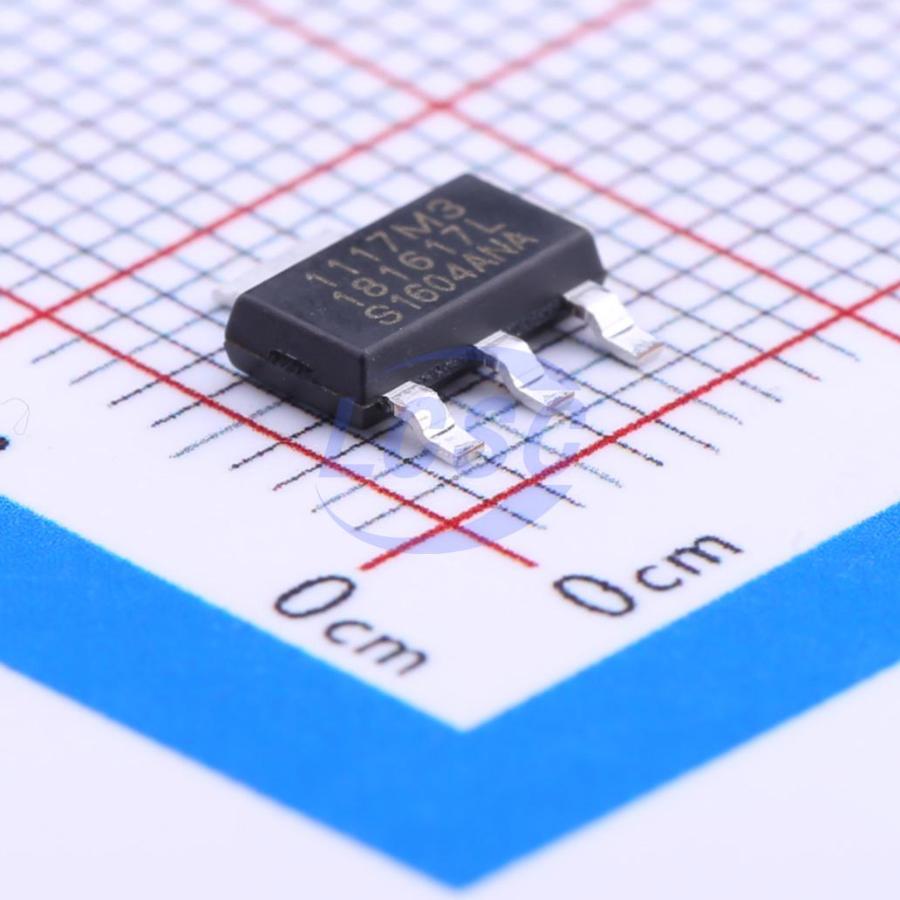

SPX1117M3-L-1-8/TR
1.8V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS CompliantActive
800mA Low Dropout Voltage Regulator
- Manufacturer
- MaxLinear
- Manufacturer part #
- SPX1117M3-L-1-8/TR
- Store part #
- C16398
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,470 in stock
#C16398
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.79 | ₹98.95 |
| 50+ | ₹15.72 | ₹786.00 |
| 150+ | ₹13.97 | ₹2,095.50 |
| 500+ | ₹11.79 | ₹5,895.00 |
| 2,500+ | ₹9.27 | ₹23,175.00 |
| 5,000+ | ₹8.69 | ₹43,450.00 |
5 × ₹19.79
₹98.95
excl. GST
₹116.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPX1117M3-L-1-8/TR
₹98.95 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The SPX1117 is a low power positive-voltage regulator designed to satisfy moderate power requirements with a cost effective, small footprint solution. This device is an excellent choice for use in battery-powered applications and portable computers. The SPX1117 features very low quiescent current and a low dropout voltage of 1.1V at a full load. As output current decreases, quiescent current flows into the load, increasing efficiency. SPX1117 is available in adjustable or fixed 1.5V, 1.8V, 2.5V, 3.3V and 5V output voltages. The SPX1117 is offered in 3-pin SOT-223 and TO-263 surface mount packages. An output capacitor of 10μF provides unconditional stability while a smaller 2.2μF capacitor is sufficient for most applications.
Applications
- Desktop PC Servers
- Graphic/Video Cards
- Industrial Equipments
- Power Supplies
Key features
- Guaranteed 800mA Output Current
- Guaranteed 1A Peak Current
- Three Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V and 5V
- Low Quiescent Current
- Low Dropout Voltage of 1.1V at 800mA
- 0.1% Line and 0.2% Load Regulation
- Stable with 2.2μF Ceramic Capacitor
- Overcurrent and Thermal Protection
- Lead Free, RoHS Compliant Packages SOT223 and TO263
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-1.8#C963404JSMSEMI · SOT-223-3 | JSMSEMI | SOT-223-3 | 2,280 | ₹6.53 · 2,280 in stock | View |
| AMS1117-1.8/TR#C41430708HGSEMI · SOT-223 | HGSEMI | SOT-223 | 1,920 | ₹6.22 · 1,920 in stock | View | |
 | 1117-1.8#C5125087IDCHIP · SOT-223 | IDCHIP | SOT-223 | 1,790 | ₹6.85 · 1,790 in stock | View |
 | TLV1117-18IDCYR#C485536TI · SOT-223-4 | TI | SOT-223-4 | 200 | ₹42.74 · 200 in stock | View |
 | AZ1117H-1.8TRE1#C94846DIODES · SOT-223 | DIODES | SOT-223 | 865 | ₹29.26 · 865 in stock | View |
