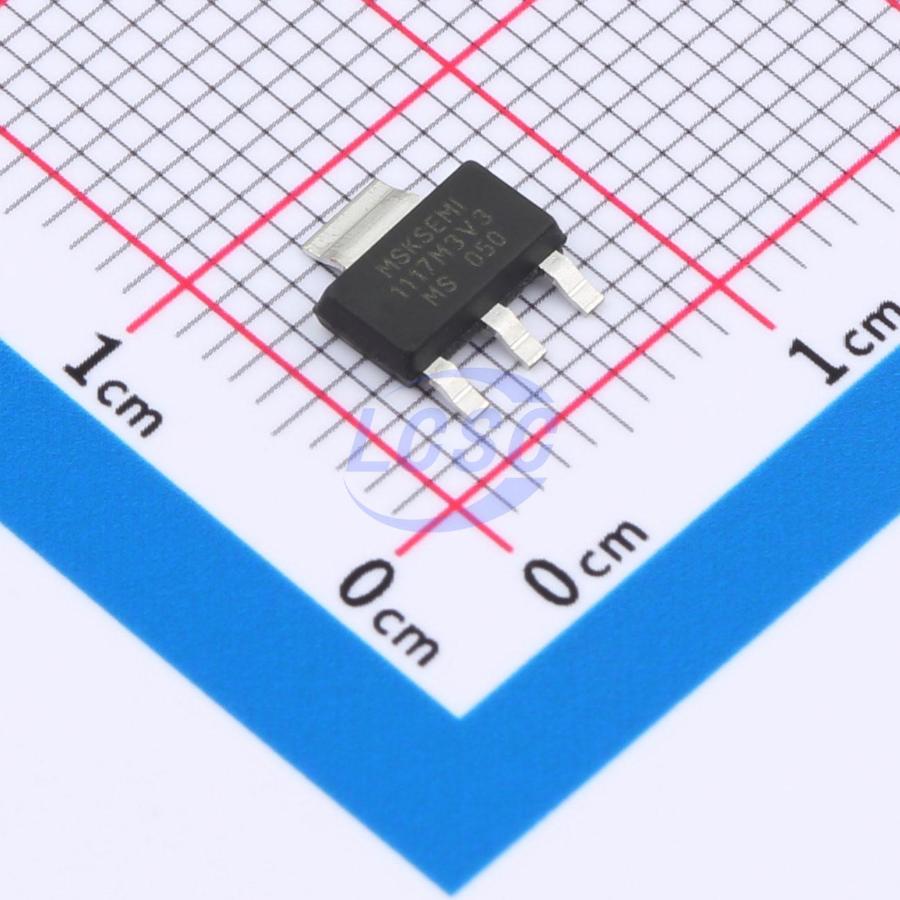

SPX1117M3-L-3-3/TR(MS)
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SPX1117M3-L-3-3/TR(MS)
- Store part #
- C22462593
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,540 in stock
#C22462593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.15 | ₹101.50 |
| 100+ | ₹8.07 | ₹807.00 |
| 300+ | ₹7.03 | ₹2,109.00 |
| 2,500+ | ₹6.23 | ₹15,575.00 |
| 5,000+ | ₹5.60 | ₹28,000.00 |
| 10,000+ | ₹5.29 | ₹52,900.00 |
10 × ₹10.15
₹101.50
excl. GST
₹119.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPX1117M3-L-3-3/TR(MS)
₹101.50 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.2 g
Overview
SPX1117M3-L-X-X/TR(MS) is a series of low dropout regulators with a 1.3V dropout voltage at 1A load current. Compared to competitors' 5mA, the SPX1117M3-L-X-X/TR(MS) features an extremely low standby current of only 2mA. In addition to fixed output versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the SPX1117M3-L-X-X/TR(MS) is also available in an adjustable version that provides output voltages from 1.25V to 12V using just two external resistors. The SPX1117M3-L-X-X/TR(MS) offers thermal shutdown protection to ensure stability of the die and power supply system. It employs trimming technology to guarantee output voltage accuracy within 2%. Other output voltage accuracy options, such as 1%, are available upon request. The SPX1117M3-L-X-X/TR(MS) comes in a SOT-223 package.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Post-regulator for switching power supplies
Key features
- Output current: 1A
- Operating input voltage range: 15V
- Line regulation: 0.03%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40℃~85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117-3.3(MS)#C20538888MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 830 | ₹6.60 · 830 in stock | View |
 | AMS1117-3.3V#C5120765MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 3,12,040 | ₹7.00 · 3,12,040 in stock | View |
 | LM1117S-3.3(MS)#C20538886MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 5,990 | ₹15.07 · 5,990 in stock | View |
 | LD1117S33TR(MS)#C20538890MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 1,300 | ₹14.71 · 1,300 in stock | View |
 | AZ1117H-3.3TRE1-MS#C22462599MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 3,605 | ₹11.83 · 3,605 in stock | View |
