TDSEMICDatasheet (PDF)

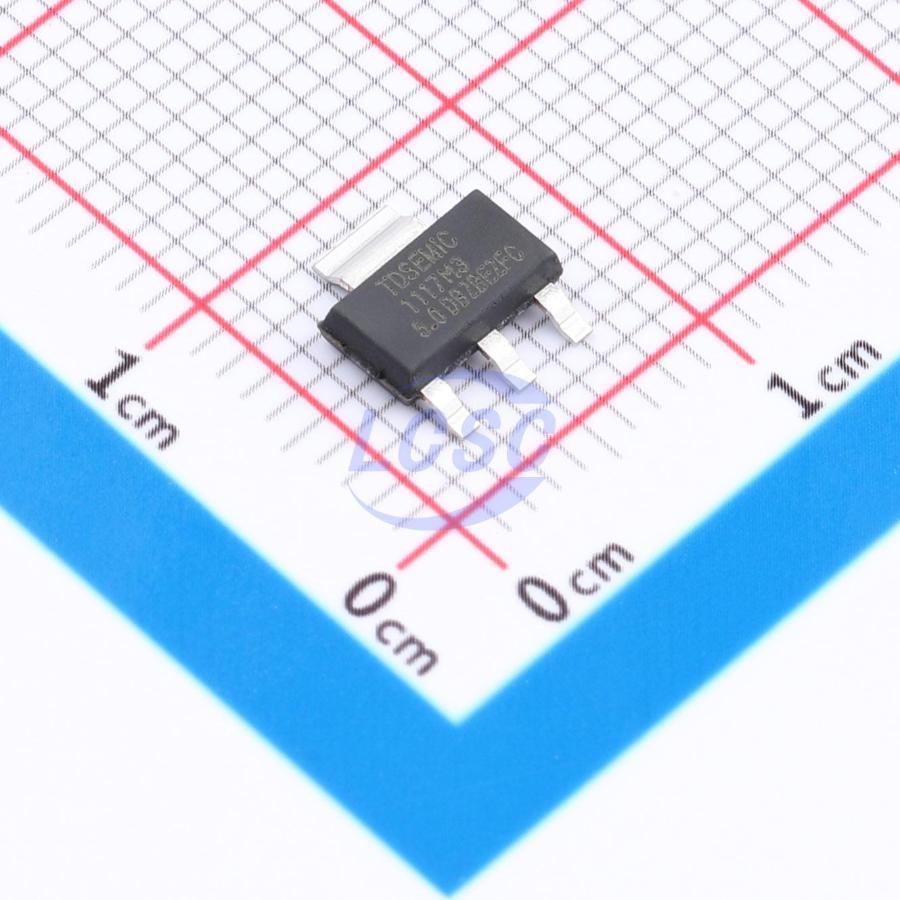

SPX1117M3-L-5-0/TR-TD
Linear Voltage Regulator IC Fixed 1A SOT-223
SOT-223ROHS CompliantActive
SPX1117M Low Dropout (LDO) Linear Voltage Regulator
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SPX1117M3-L-5-0/TR-TD
- Store part #
- C49211323
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,490 in stock
#C49211323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.15 | ₹50.75 |
| 50+ | ₹7.91 | ₹395.50 |
| 150+ | ₹6.79 | ₹1,018.50 |
| 500+ | ₹5.95 | ₹2,975.00 |
| 2,500+ | ₹5.28 | ₹13,200.00 |
| 5,000+ | ₹4.95 | ₹24,750.00 |
5 × ₹10.15
₹50.75
excl. GST
₹59.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPX1117M3-L-5-0/TR-TD
₹50.75 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.245 g
Overview
The SPX1117M is a low dropout linear voltage regulator with an output current capability of 1.0A. This series includes both fixed and adjustable output voltage versions, with an output voltage accuracy of ±1.5%. To ensure stability of the IC and power supply system, the SPX1117M incorporates thermal protection and current limiting protection. Trimming techniques are employed to maintain output voltage accuracy within ±1.5%. The SPX1117M is available in SOT223, TO252-2, TO220-3, TO263-3, and SOT89-3 packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-stage voltage regulators
Key features
- Adjustable output voltage from 1.25V to 13.8V with only two external resistors
- Fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5.0V
- 1.0A output current capability
- Output voltage accuracy ±1.5%
- Operating voltage up to 15V
- Line regulation < 0.2%
- Load regulation < 0.4%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SPX1117M3-L-5.0/TR-TD#C42422082TDSEMIC · SOT-223 | TDSEMIC | SOT-223 | 1,650 | ₹9.80 · 1,650 in stock | View | |
