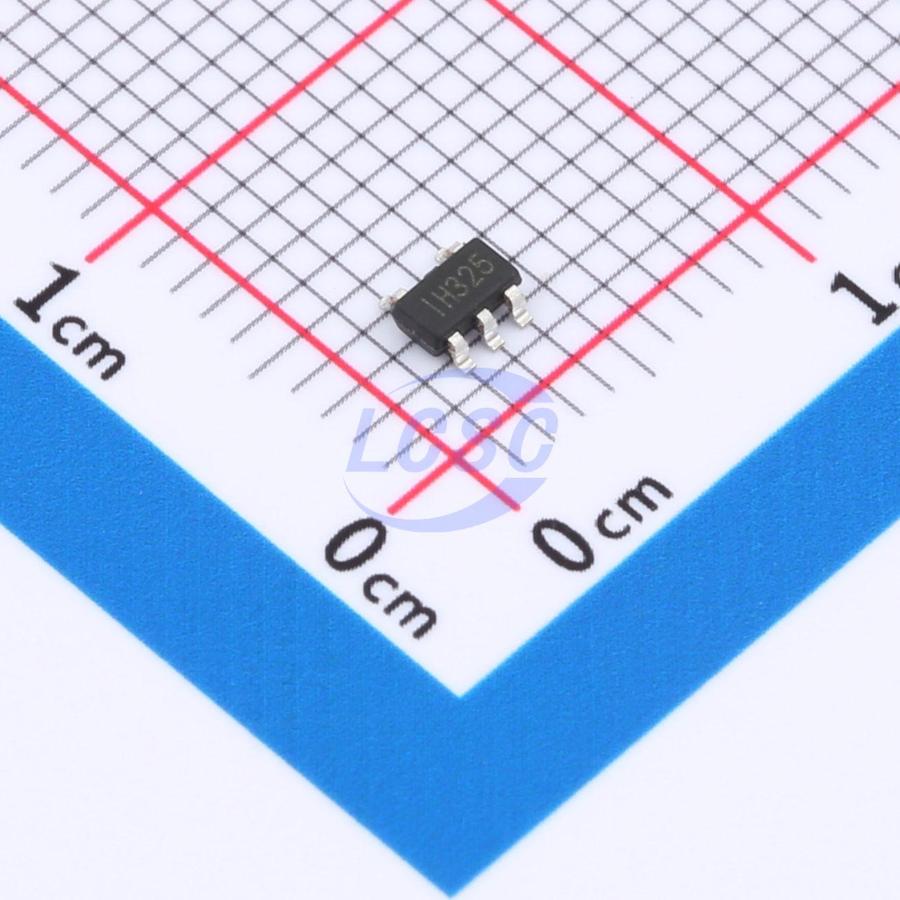

SPX3819M5-L-2-5
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
20V,500mA, 5uA, Higt PSRR Voltage Reaulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SPX3819M5-L-2-5
- Store part #
- C23380893
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,140 in stock
#C23380893
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.96 | ₹84.80 |
| 50+ | ₹13.52 | ₹676.00 |
| 150+ | ₹11.81 | ₹1,771.50 |
| 500+ | ₹10.52 | ₹5,260.00 |
| 3,000+ | ₹9.33 | ₹27,990.00 |
| 6,000+ | ₹8.81 | ₹52,860.00 |
5 × ₹16.96
₹84.80
excl. GST
₹100.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SPX3819M5-L-2-5
₹84.80 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The Devices is a lowdropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 5.0 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The Devices is stable with the ceramic output capacitor over its wide input range from 2V to 20V and the entire range of output load current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 5.0 μA Ground Current at no Load
- ±2% Output Accuracy
- 500 mA Output Current
- Wide Operating Input Voltage Range: 2V to 20V
- Dropout Voltage: 0.35V at 100mA (Vout = 5V)
- Support Fixed Output Voltage 1.8V, 3.3V, 5V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSPX3819M5-L-2-5#C18212664TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,265 | ₹19.57 · 3,265 in stock | View |
 | TPMIC5219-2.5YM5#C18212648TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,230 | ₹21.51 · 2,230 in stock | View |
