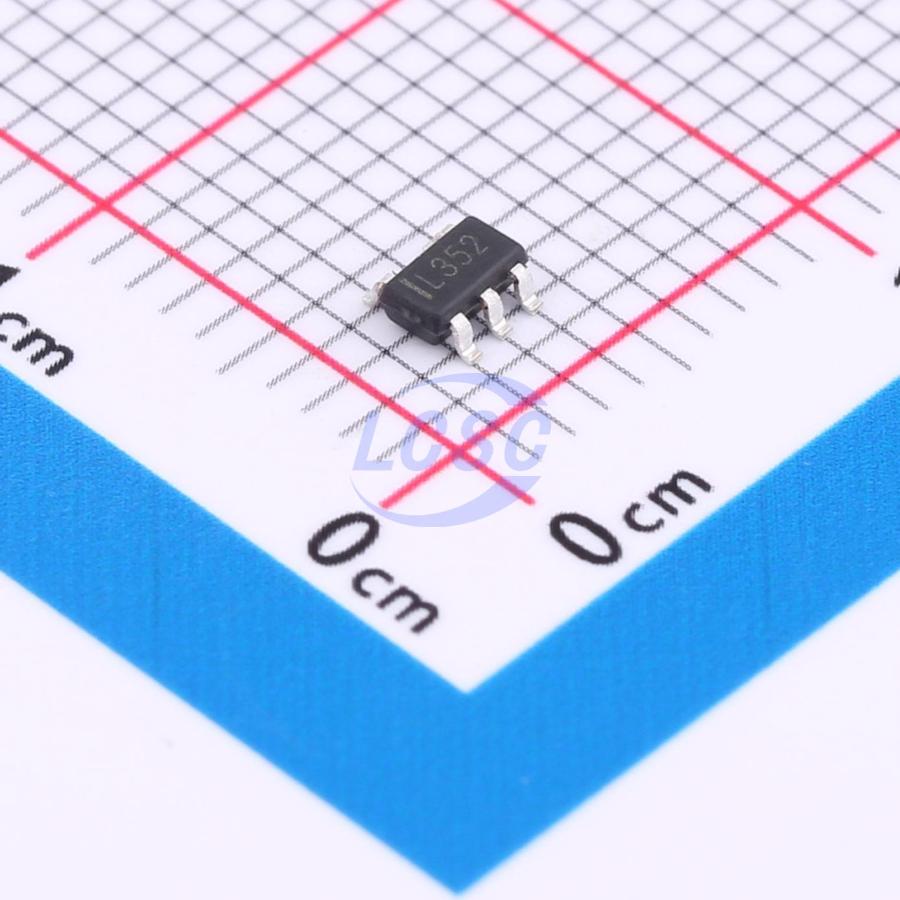

SPX3819M5-L-3-3(MS)
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
IC REG LINEAR 3.3V 500mA SOT-23-5
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SPX3819M5-L-3-3(MS)
- Store part #
- C20538874
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C20538874
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.02 | ₹75.10 |
| 50+ | ₹11.89 | ₹594.50 |
| 150+ | ₹10.32 | ₹1,548.00 |
| 500+ | ₹9.14 | ₹4,570.00 |
| 3,000+ | ₹8.18 | ₹24,540.00 |
| 6,000+ | ₹7.70 | ₹46,200.00 |
5 × ₹15.02
₹75.10
excl. GST
₹88.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SPX3819M5-L-3-3(MS)
₹75.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 24V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SPX3819M5-L-X-X(MS) series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range,low dropout voltage,low power consumption, and miniaturized packaging. Quiescent current of only 1.5μA makes these devices ideal for powering the battery-powered,always-on systems that require very little idle-state power dissipation to a longer service life. The SPX3819M5-L-X-X(MS) series of linear regulators are stable with the ceramic output capacitor over its wide input range from 2V to 24V and the entire range of output load current ( 0mA to 500mA ).
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 1.5μA Ground Current at no Load
- ±2% Output Accuracy
- 500mA Output Current
- Wide Operating Input Voltage Range: 2V to 24V
- Dropout Voltage: 0.35V at 100mA / VOUT 5V
- Support Fixed Output Voltage 1.8V, 3.3V, 5V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Packages Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2204K-3.3TRG1(MS)#C20627184MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,775 | ₹12.67 · 2,775 in stock | View |
 | SPX5205M5-L-3-3/TR(MS)#C20627206MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,360 | ₹16.84 · 2,360 in stock | View |
 | MIC5219-3.3YM5-MS#C30197485MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,825 | ₹26.50 · 2,825 in stock | View |
 | LP2985-33DBVR-MS#C30197522MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 865 | ₹16.63 · 865 in stock | View |
