MaxLinearDatasheet (PDF)

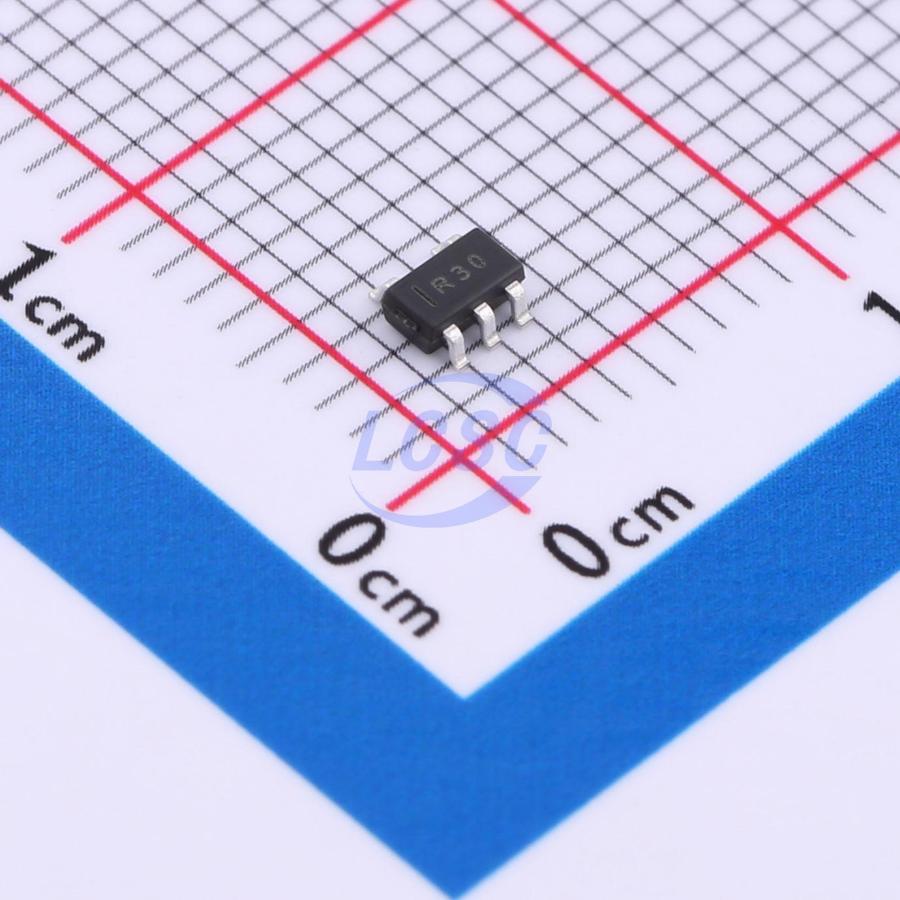

SPX5205M5-L-3-0/TR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
150mA, Low-Noise LDO Voltage Regulator
- Manufacturer
- MaxLinear
- Manufacturer part #
- SPX5205M5-L-3-0/TR
- Store part #
- C2935144
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,020 in stock
#C2935144
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.22 | ₹91.10 |
| 50+ | ₹17.78 | ₹889.00 |
| 150+ | ₹17.49 | ₹2,623.50 |
| 500+ | ₹17.20 | ₹8,600.00 |
5 × ₹18.22
₹91.10
excl. GST
₹107.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SPX5205M5-L-3-0/TR
₹91.10 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 16V
- Features
- Enable control;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SPX5205 is a positive voltage regulator with very low dropout voltage, output noise and ground current (750μA at 100mA). VOUT has a tolerance of less than 1% and is temperature compensated. Fixed output voltages 1.8V, 3.0V, 3.3V, and 5.0V and an adjustable version are available in a small 5-pin SOT-23 package. Other key features include zero off-mode current, reverse battery protection, thermal shutdown and current limit. The SPX5205 is an excellent choice for use in battery-powered applications, and where power conservation is desired such as: cellular/ cordless telephones, radio control systems and portable computers.
Applications
- PDA
- Battery Powered Systems
- Cellular Phone
- Cordless Telephones
- Radio Control Systems
- Laptop, Palmtop and Notebook Computers
- Portable Consumer Equipment
- Portable Instrumentation
- Bar Code Scanners
- SMPS Post-Regulator
Key features
- Low Noise Output LDO: 40μVRMS Possible
- 1% Initial Accuracy
- Very Low Quiecent Current: 70μA
- Low Dropout Voltage (210mV at 150mA)
- Current and Thermal Limiting
- Reverse-Battery Protection
- Wide Range of Fixed Output Voltages: 1.8V, 3.0V, 3.3V and 5.0V
- Zero Off-Mode Current
- Small 5-Pin SOT-23
- Pin Compatible to MIC5205/MAX8877 (fixed options only) and LP2985
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70930DBVR-TP#C50314383TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,935 | ₹16.43 · 2,935 in stock | View |
 | PJ54M30SE#C41367948PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 495 | ₹15.65 · 495 in stock | View |
 | LDK320AM30R#C5267881ST · SOT-23-5L | ST | SOT-23-5L | 3,000 | ₹88.10 · 3,000 in stock | View |
 | LDK320M30R#C5267884ST · SOT-23-5L | ST | SOT-23-5L | 41 | ₹248.38 · 41 in stock | View |
 | LP2985AIM5X-3.0/NOPB#C2861507TI · SOT-23-5 | TI | SOT-23-5 | 710 | ₹89.66 · 710 in stock | View |
