MaxLinearDatasheet (PDF)

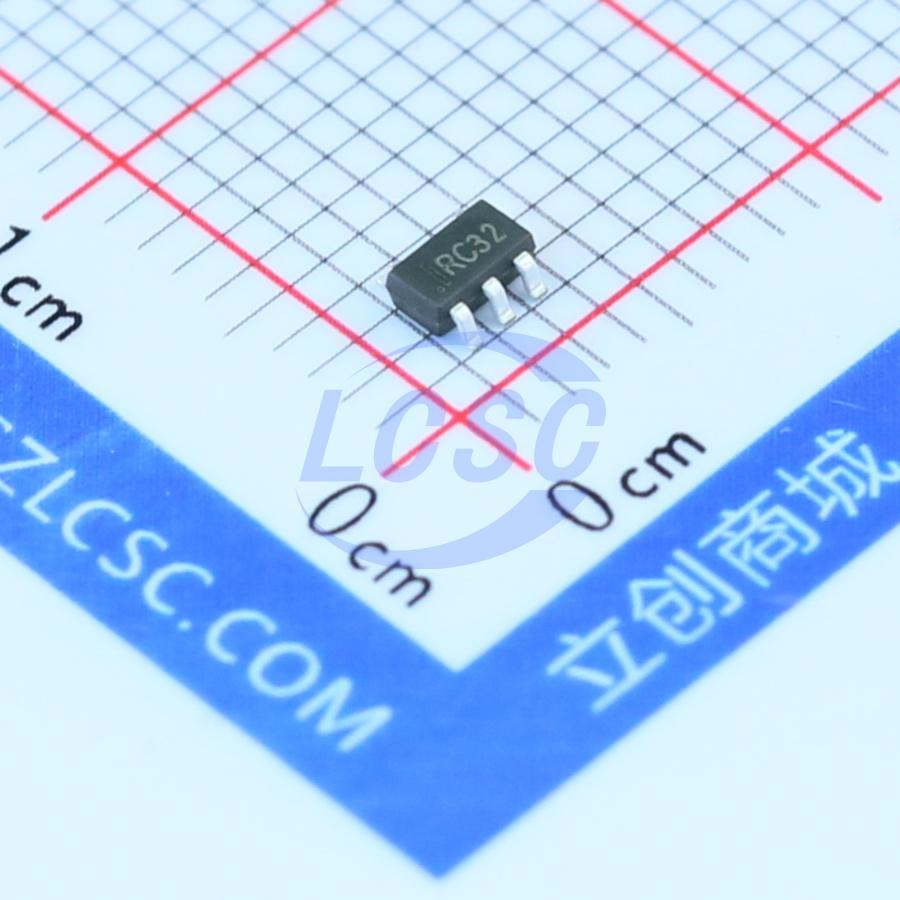

SPX5205M5-L-3-3/TR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
150mA, Low-Noise LDO Voltage Regulator
- Manufacturer
- MaxLinear
- Manufacturer part #
- SPX5205M5-L-3-3/TR
- Store part #
- C6864
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
81,650 in stock
#C6864
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.69 | ₹183.45 |
| 50+ | ₹29.32 | ₹1,466.00 |
| 150+ | ₹26.16 | ₹3,924.00 |
| 500+ | ₹22.21 | ₹11,105.00 |
| 3,000+ | ₹17.03 | ₹51,090.00 |
| 6,000+ | ₹15.97 | ₹95,820.00 |
5 × ₹36.69
₹183.45
excl. GST
₹216.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SPX5205M5-L-3-3/TR
₹183.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 16V
- Features
- Enable control;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.082 g
Overview
The SPX5205 is a positive voltage regulator with very low dropout voltage, output noise and ground current (/750μA at 100mA). VOUT has a tolerance of less than 1% and is temperature compensated. Fixed output voltages 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, and 5.0V and an adjustable version are available in a small 5-pin SOT-23 package. Other key features include zero off-mode current, reverse battery protection, thermal shutdown and current limit. The SPX5205 is an excellent choice for use in battery-powered applications, and where power conservation is desired such as: cellular/ cordless telephones, radio control systems, and portable computers.
Applications
- PDA
- Battery Powered Systems
- Cellular Phone
- Cordless Telephones
- Radio Control Systems
- Laptop, Palmtop, and Notebook Computers
- Portable Consumer Equipment
- Portable Instrumentation
- Bar Code Scanners
- SMPS Post-Regulator
Key features
- Low Noise Output LDO: 40μV RMS Possible
- 1% Initial Accuracy
- Very Low Quiecent Current: 70μA
- Low Dropout Voltage (210mV at 150mA)
- Current and Thermal Limiting
- Reverse-Battery Protection
- Wide Range of Fix Output Voltages: 1.2V, 1.8V, 2.5V, 3.0V, 3.3V and 5.0V
- Zero Off-Mode Current
- Small 5-Pin SOT-23 Pin Compatible to MIC5205/MAX8877 (fixed Options Only) and LP2985
