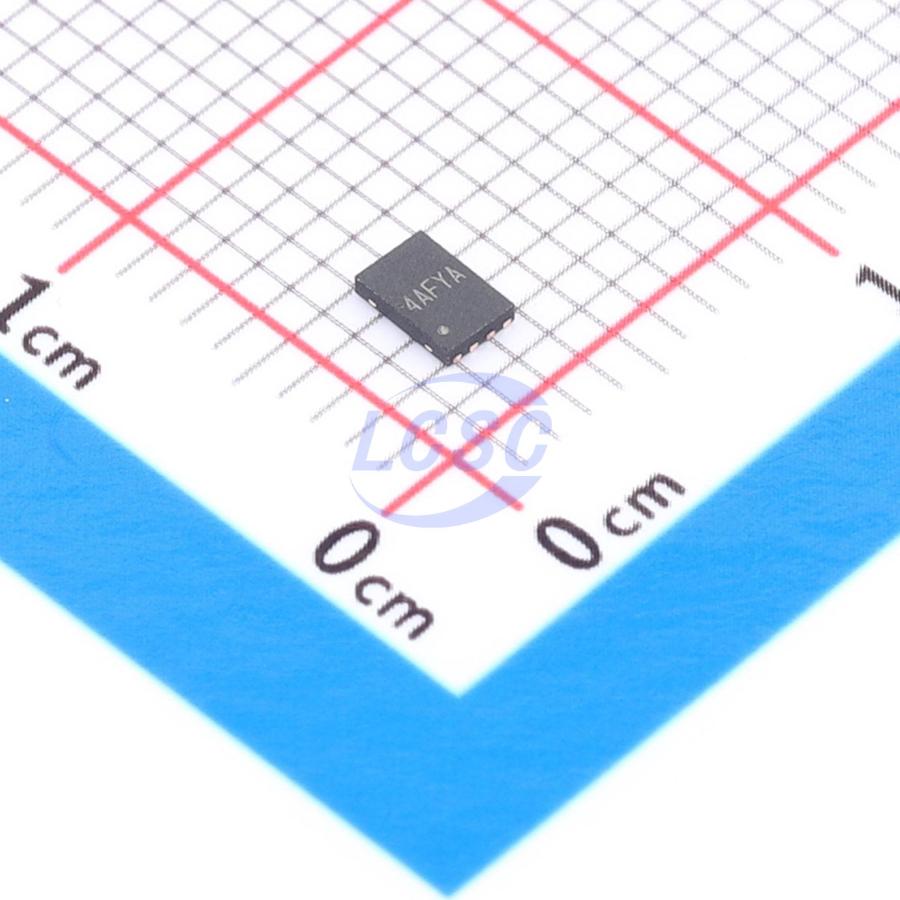

SilergyDatasheet (PDF)
SQ24345HDGD
Positive Adjustable DFN-8(2x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-8(2x3)RoHSActive
IC REG LINEAR 500mA DFN-8(2x3)
- Manufacturer
- Silergy
- Manufacturer part #
- SQ24345HDGD
- Store part #
- C25202833
- Package / case
- DFN-8(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,383 in stock
#C25202833
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.47 | ₹57.47 |
| 10+ | ₹50.96 | ₹509.60 |
| 30+ | ₹47.71 | ₹1,431.30 |
| 100+ | ₹44.45 | ₹4,445.00 |
| 500+ | ₹42.51 | ₹21,255.00 |
| 1,000+ | ₹41.63 | ₹41,630.00 |
1 × ₹57.47
₹57.47
excl. GST
₹67.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ24345HDGD
₹57.47 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 36V
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Input under-voltage protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
SQ24345H is a linear regulator with 500mA high current capability, featuring ultra-low ground current and low dropout voltage. The device offers an adjustable output settable via two external resistors. Comprehensive protection features are provided, including current limiting, output short-circuit protection, and over-temperature operation.
Applications
- Portable consumer devices
- Portable instruments
- Industrial equipment
- Post-regulator for switching power supplies
Key features
- 4V to 36V input voltage range, V_ABS = 40V
- V_FB: 1.235V (±1%)
- Output voltage accuracy: ±1%
- Line regulation: 0.2%/V
- Load regulation: 0.25%
- Power supply rejection ratio: 60dB
- Noise level: 150μV_RMS
- Operating junction temperature: -40℃ to 125℃
- Auto-retry after all faults
- Compact package: DFN2×3-8
