VISHAYDatasheet (PDF)

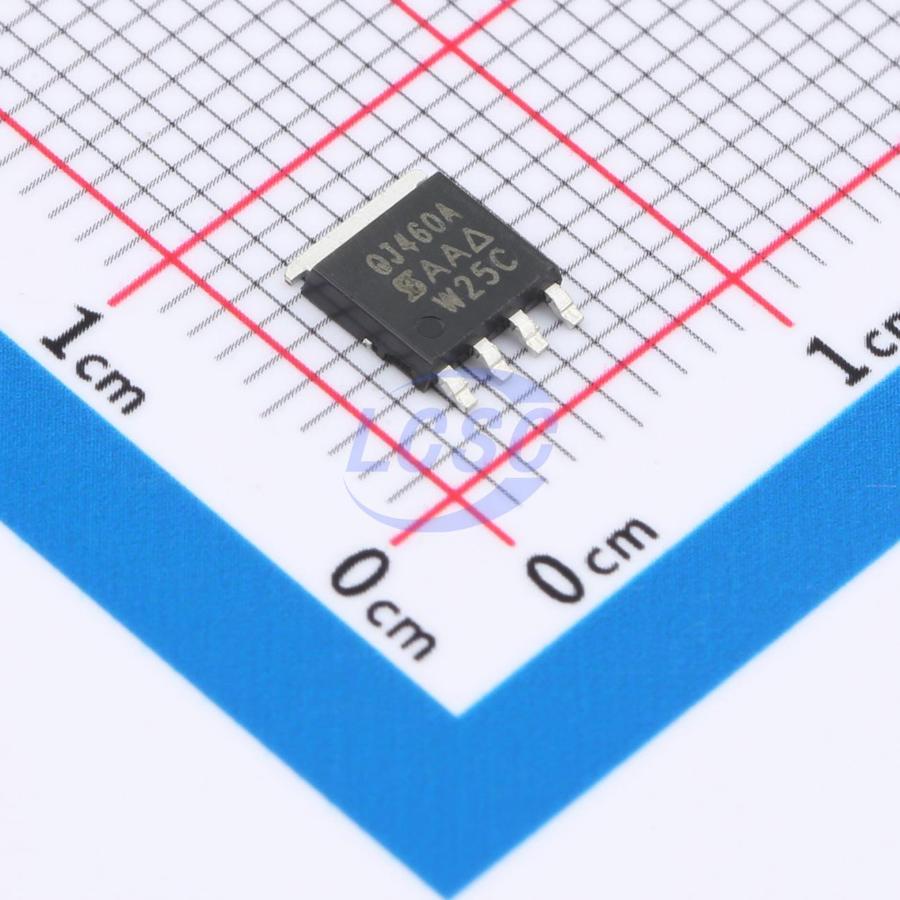

SQJ460AEP-T1_GE3
83W 60V 32A 9.6mΩ@10V 1 N-channel N-Channel PowerPAK-SO-8L Single FETs, MOSFETs RoHS
PowerPAK-SO-8LROHS3 CompliantActive
MOSFET N-CH 60V 32A PowerPAK-SO-8L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ460AEP-T1_GE3
- Store part #
- C727781
- Package / case
- PowerPAK-SO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C727781
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.26 | ₹136.26 |
| 10+ | ₹132.99 | ₹1,329.90 |
| 30+ | ₹131.03 | ₹3,930.90 |
| 100+ | ₹128.86 | ₹12,886.00 |
1 × ₹136.26
₹136.26
excl. GST
₹160.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ460AEP-T1_GE3
₹136.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 393pF
- Ciss-Input Capacitance
- 4.795nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 32A
- Reverse Transfer Capacitance (Crss)
- 235pF
- RDS(on)
- 9.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- TrenchFET Power MOSFET
- AEC-Q101 Qualified
- 100% Rg and UIS Tested
- RoHS Directive 2002/95/EC Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJ464EP-T1_GE3#C727601VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 40 | ₹348.64 · 40 in stock | View |
 | SQJA02EP-T1_GE3#C727754VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 30 | ₹183.87 · 30 in stock | View |
 | SQJ486EP-T1_GE3#C727780VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 943 | ₹111.69 · 943 in stock | View |
 | SQJA00EP-T1_GE3#C727516VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 6 | ₹144.72 · 6 in stock | View |
 | SQJA86EP-T1_GE3#C727550VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | 5 | ₹135.07 · 5 in stock | View |
