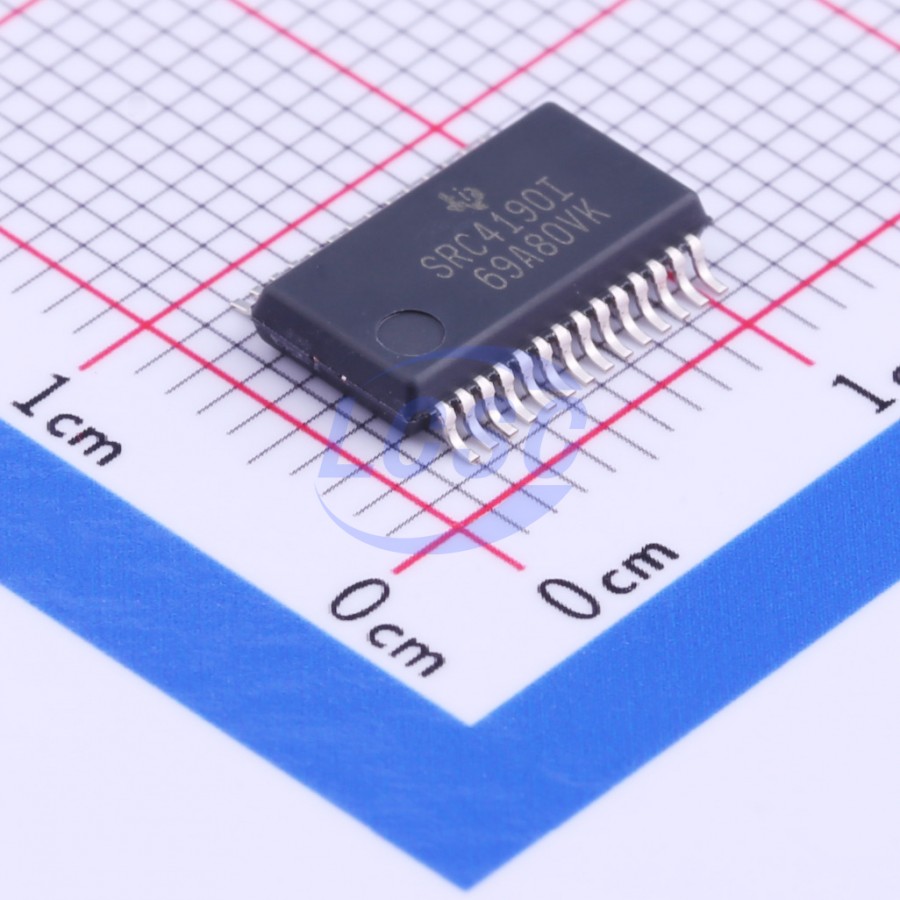

SRC4190IDBR

Sample Rate Converter I2S 4kHz~212kHz SSOP-28-208mil Audio Special Purpose RoHS

SSOP-28-208milROHS3 CompliantActive

SRC4190 192-kHz Stereo Asynchronous Sample-Rate Converters

Manufacturer: TI
Manufacturer part #: SRC4190IDBR
Store part #: C179667
Package / case: SSOP-28-208mil
Category: Audio Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

993 in stock

#C179667

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹950.96	₹950.96
10+	₹859.02	₹8,590.20
30+	₹800.27	₹24,008.10
100+	₹743.68	₹74,368.00

Quantity (min 1)

1 × ₹950.96

₹950.96

excl. GST

₹1,122.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SRC4190IDBR

₹950.96 for 1 + GST

Specifications

Type: Sample Rate Converter
Operating Temperature: -45℃~+85℃
Features: Asynchronous sample rate conversion;Mute control;Master-slave clock negotiation
Interface: I2S
Resolution (Bits): 4kHz~212kHz
Voltage - Supply: 3.3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.496 g

Overview

The SRC4190 device is an asynchronous sample rate converter designed for professional and broadcast audio applications. The SRC4190 combines a wide input-to-output sampling ratio with outstanding dynamic range and low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4190 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors. The SRC4190 is a standalone pin-programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions. The SRC4190 may be operated from a single 3.3-V power supply. A separate digital I/O supply (VIO) operates with a 1.65-V to 3.6-V supply, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. The SRC4190 is available in a 28-pin SSOP package.

Applications

Digital Mixing Consoles
Digital Audio Workstations
Audio Distribution Systems
Broadcast Studio Equipment
High-End A/V Receivers
General Digital Audio Processing

Key features

Automatic Sensing of the Input-to-Output Sampling Ratio
Wide Input-to-Output Sampling Range: 16:1 to 1:16
Supports Input and Output Sampling Rates up to 212 kHz
Dynamic Range: 128 dB (–60-dB fS Input, BW = 20 Hz to fS / 2, A-Weighted)
THD+N: –125 dB (0-dB fS Input, BW = 20 Hz to fS / 2)
Attenuates Sampling and Reference Clock Jitter
High-Performance, Linear Phase Digital Filtering
Flexible Audio Serial Ports: Master or Slave Mode Operation Supports I²S Left Justified, Right Justified, and TDM Data Formats Supports 16-, 18-, 20-, or 24-Bit Audio Data, TDM Mode Allows Daisy Chaining of up to Eight Devices
Supports 24-, 20-, 18-, or 16-Bit Input and Output All Output Data is Dithered from the Internal 28-Bit Data Path
Low Group Delay Option for Interpolation Filter
Soft Mute Function
Bypass Mode
Power-Down Mode
Operates from a Single 3.3-V Power Supply
Small 28-Pin SSOP Package
Pin Compatible With the SRC4192, AD1895, and AD1896
