onsemiDatasheet (PDF)

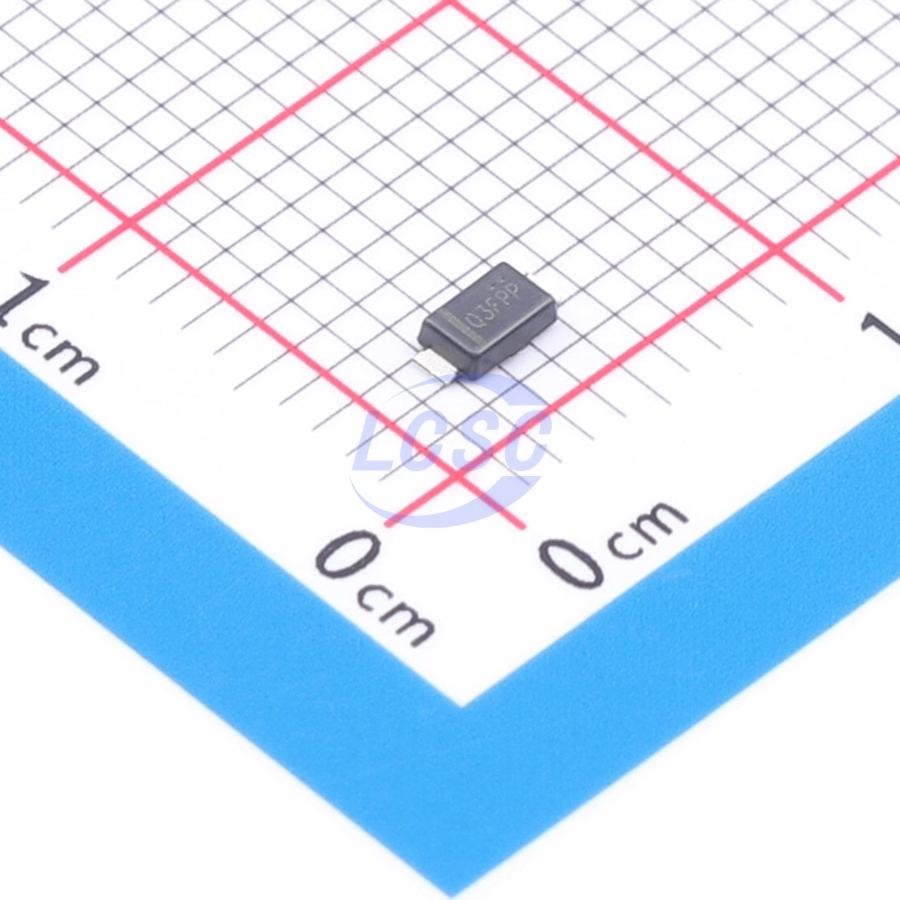

SS13FP
1 Independent 30V 500mV@1A 1A SOD-123HE Single Diodes RoHS
SOD-123HEROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SS13FP
- Store part #
- C894421
- Package / case
- SOD-123HE
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
343 in stock
#C894421
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.22 | ₹40.22 |
| 10+ | ₹39.35 | ₹393.50 |
| 30+ | ₹38.70 | ₹1,161.00 |
| 100+ | ₹38.05 | ₹3,805.00 |
1 × ₹40.22
₹40.22
excl. GST
₹47.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS13FP
₹40.22 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 400uA@30V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
Key features
- Larger Cathode Pad for Improved Power Dissipation
- Ultra Thin Profile - Package Height < 1.0 mm
- High Surge Current Capability
- Low Power Loss, High Efficiency
- UL Flammability 94V - 0 Classification
- MSL 1 per J - STD - 020
- AEC - Q101 Qualified
- These Devices are Pb - Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS14FP#C894423onsemi · SOD-123HE | onsemi | SOD-123HE | 1,935 | ₹37.14 · 1,935 in stock | View |
 | SST14HE#C5157086Jingdao Microelectronics · SOD-123HE | Jingdao Microelectronics | SOD-123HE | 14,370 | ₹4.47 · 14,370 in stock | View |
 | SS16FP#C894427onsemi · SOD-123HE | onsemi | SOD-123HE | 6,615 | ₹16.41 · 6,615 in stock | View |
 | DFLS240L-7#C74179DIODES · PowerDI-123 | DIODES | PowerDI-123 | 12,890 | ₹48.79 · 12,890 in stock | View |
 | DFLS230-7#C110495DIODES · PowerDI-123 | DIODES | PowerDI-123 | 1,140 | ₹41.12 · 1,140 in stock | View |
