VISHAYDatasheet (PDF)

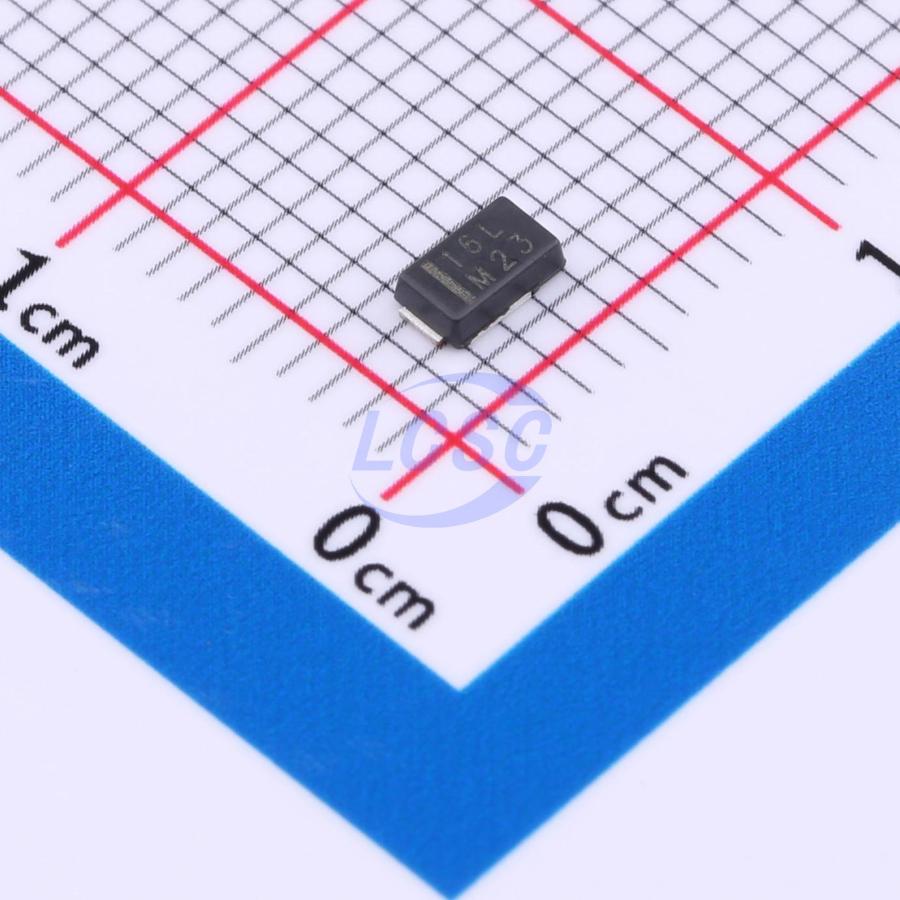

SS1P6LHM3/84A
Diode 1 Independent 60V 1A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS1P6LHM3/84A
- Store part #
- C3757530
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C3757530
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.43 | ₹40.43 |
| 10+ | ₹32.39 | ₹323.90 |
| 30+ | ₹28.93 | ₹867.90 |
| 100+ | ₹24.63 | ₹2,463.00 |
| 500+ | ₹22.72 | ₹11,360.00 |
| 1,000+ | ₹19.01 | ₹19,010.00 |
1 × ₹40.43
₹40.43
excl. GST
₹47.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS1P6LHM3/84A
₹40.43 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 590mV@1A
- Reverse Leakage Current (Ir)
- 100uA@60V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 50A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile - typical height of 1.0mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS2P6HM3/84A#C2981060VISHAY · DO-220AA | VISHAY | DO-220AA | 860 | ₹48.58 · 860 in stock | View |
 | SS2P6-M3/84A#C5137032VISHAY · DO-220AA | VISHAY | DO-220AA | 50 | ₹26.91 · 50 in stock | View |
 | SS3P6HM3/85A#C2981051VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,100 | ₹15.24 · 2,100 in stock | View |
| V2PM12LHM3/H#C3759721VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 24 | ₹54.86 · 24 in stock | View | |
 | SS3P6HM3/84A#C968544VISHAY · DO-220AA | VISHAY | DO-220AA | 290 | ₹20.93 · 290 in stock | View |
