JSCJDatasheet (PDF)

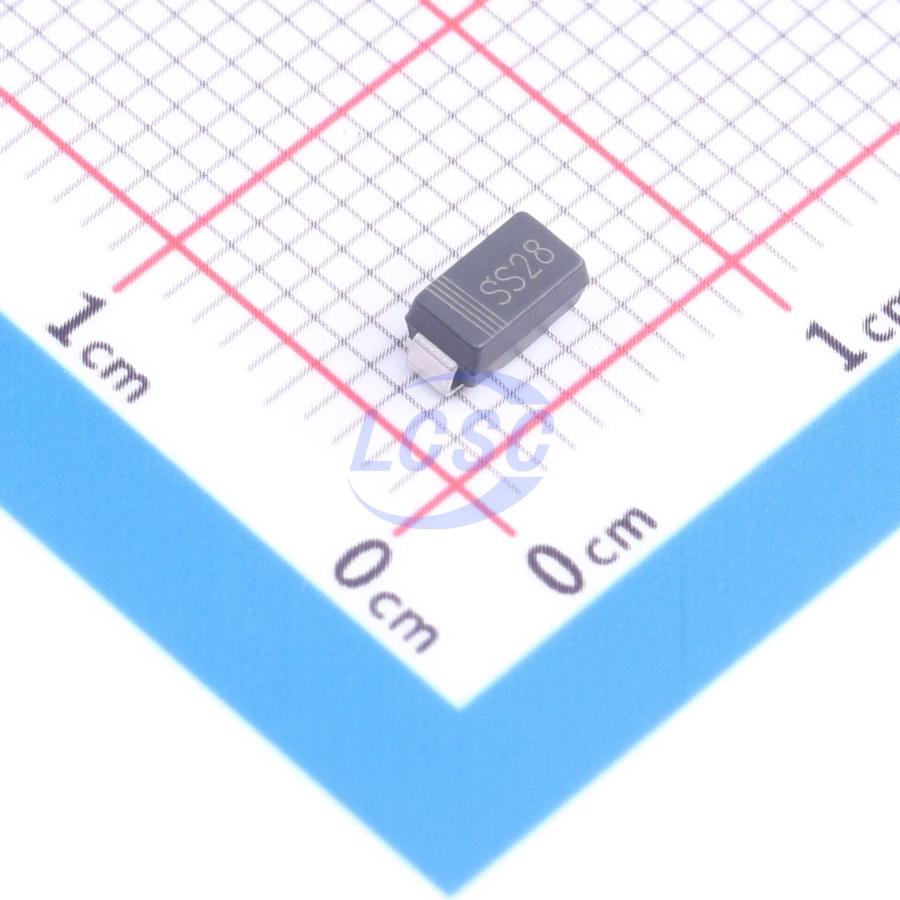

SS28
1 Independent 80V 850mV@2A 2A SMAG Single Diodes
SMAGRoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- SS28
- Store part #
- C51886701
- Package / case
- SMAG
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,590 in stock
#C51886701
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.51 | ₹65.10 |
| 100+ | ₹5.20 | ₹520.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 1,000+ | ₹4.06 | ₹4,060.00 |
| 5,000+ | ₹3.66 | ₹18,300.00 |
| 10,000+ | ₹3.48 | ₹34,800.00 |
10 × ₹6.51
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SS28
₹65.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - Forward(Vf@If)
- 850mV@2A
- Reverse Leakage Current (Ir)
- 100uA
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.104 g
Overview
Applications
- Rectifier
Key features
- Average forward current 2A
- Reverse repetitive peak voltage 20V~200V
- High surge current capability
- Polarity: color band indicates cathode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS215#C5295570JSCJ · SMAG | JSCJ | SMAG | 5,000 | ₹6.28 · 5,000 in stock | View |
 | SS38#C51886698JSCJ · SMAG | JSCJ | SMAG | 4,780 | ₹12.69 · 4,780 in stock | View |
 | SS510#C5295572JSCJ · SMAG | JSCJ | SMAG | 4,775 | ₹16.01 · 4,775 in stock | View |
 | SS515#C5295574JSCJ · SMAG | JSCJ | SMAG | 4,410 | ₹12.22 · 4,410 in stock | View |
 | SS510L#C5295573JSCJ · SMAG | JSCJ | SMAG | 7,345 | ₹18.92 · 7,345 in stock | View |
