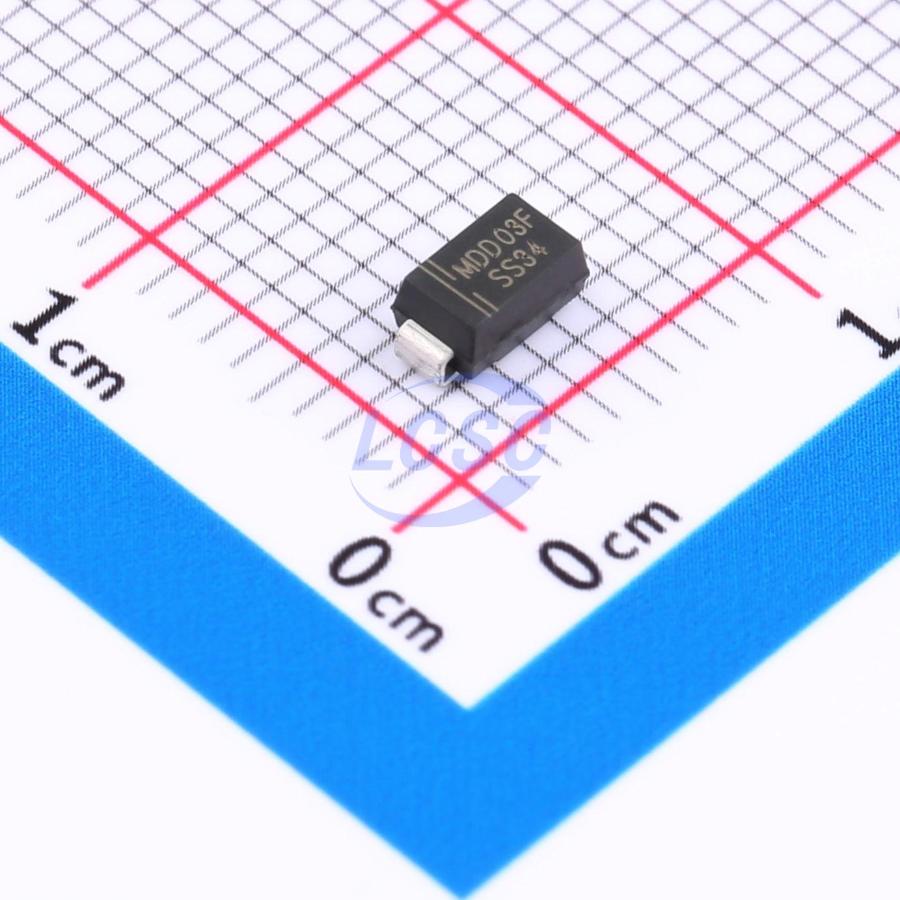

SS34
Diode Independent 40V 3A Surface Mount SMA(DO-214AC)
DIODE SCHOTTKY 40V SMA(DO-214AC)
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- SS34
- Store part #
- C8678
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,71,800 in stock
#C8678
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.86 | ₹77.20 |
| 200+ | ₹3.10 | ₹620.00 |
| 600+ | ₹2.76 | ₹1,656.00 |
| 5,000+ | ₹1.88 | ₹9,400.00 |
| 10,000+ | ₹1.78 | ₹17,800.00 |
| 20,000+ | ₹1.72 | ₹34,400.00 |
20 × ₹3.86
₹77.20
excl. GST
₹91.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SS34
₹77.20 for 20 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 550mV@3A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.121 g
Overview
Key features
- Plastic package meets UL 94V-0 flammability rating
- Surface mount application
- Metal-silicon junction, majority carrier conduction
- Low power consumption, high efficiency
- Built-in stress relief, suitable for automated placement
- High forward surge current capability
- Guaranteed high-temperature soldering: terminals at 250℃ for 10 seconds
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B340A#C64982MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 6,67,450 | ₹4.60 · 6,67,450 in stock | View |
 | SL34#C113931MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 32,430 | ₹8.06 · 32,430 in stock | View |
 | SS54#C22452MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 20,84,800 | ₹4.92 · 20,84,800 in stock | View |
 | SS36#C16015MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 4,25,160 | ₹4.35 · 4,25,160 in stock | View |
 | SS38#C64999MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 21,980 | ₹5.21 · 21,980 in stock | View |
Questions about SS34
Is This Diode Compatible With Standard Automated Placement Equipment?
Yes. The MDD SS34 features a surface-mount SMA (DO-214AC) plastic package designed with built-in stress relief, making it fully compatible with modern automated pick-and-place manufacturing systems.
How Can I Find Suitable Alternatives or Replacements for This Part?
You can explore direct drop-in alternatives or cross-reference options by using the Show similar products feature on the product page, which lists exactly 49,153 comparable single rectifiers.
What Are the Primary Application Scenarios for the SS34 Diode?
Thanks to its low power consumption, high efficiency, and high forward surge current capability, this Schottky barrier rectifier is ideal for surface-mount applications such as freewheeling, DC-to-DC conversion, and polarity protection circuits.
What Are the Key Technical Specifications of This Device?
The diode features a maximum DC reverse voltage (Vr) of 40V, a rectified forward current (If) of 3A, a forward voltage drop (Vf@If) of 550mV at 3A, and an operating junction temperature range of -55°C to +125°C.
What Are the Recommended Soldering Conditions During Implementation?
During the PCB assembly and manufacturing process, the device is guaranteed to withstand high-temperature soldering conditions up to 250°C for a maximum duration of 10 seconds at the terminals.
