JSCJDatasheet (PDF)

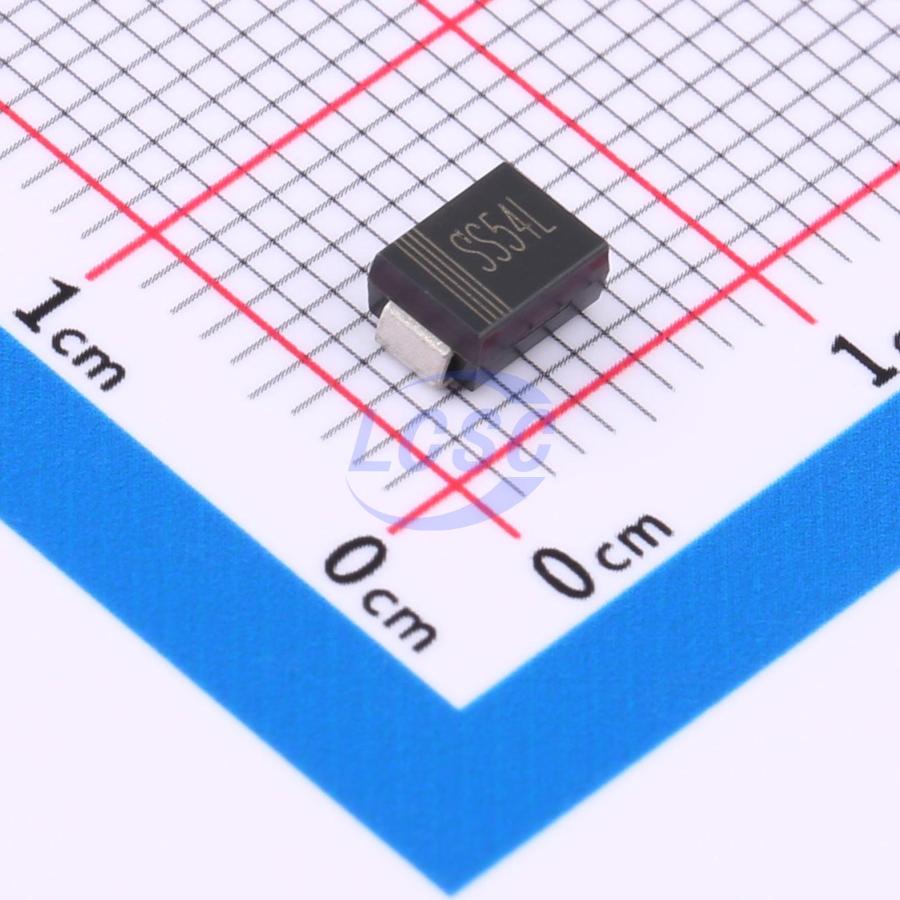

SS54L(SMBG)
Diode 40V 5A Surface Mount SMBG
SMBGROHS CompliantActive
DIODE SCHOTTKY 40V SMBG
- Manufacturer
- JSCJ
- Manufacturer part #
- SS54L(SMBG)
- Store part #
- C5356747
- Package / case
- SMBG
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,515 in stock
#C5356747
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.27 | ₹126.35 |
| 50+ | ₹21.34 | ₹1,067.00 |
| 150+ | ₹19.37 | ₹2,905.50 |
| 500+ | ₹17.90 | ₹8,950.00 |
| 3,000+ | ₹16.71 | ₹50,130.00 |
| 6,000+ | ₹16.13 | ₹96,780.00 |
5 × ₹25.27
₹126.35
excl. GST
₹149.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS54L(SMBG)
₹126.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - Forward(Vf@If)
- 450mV@5A
- Reverse Leakage Current (Ir)
- 300uA@40V
- Non-Repetitive Peak Forward Surge Current
- 120A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
Applications
- Rectifier
Key features
- Average forward current (IF(AV)): 5A
- Repetitive peak reverse voltage (VRRM): 40V
- High surge current capability
- Polarity: color band indicates cathode
- Low forward peak voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS56L(SMBG)#C5356748JSCJ · SMBG | JSCJ | SMBG | On request | ₹14.90 · 0 in stock | View |
 | SK515(SMBG)#C5356753JSCJ · SMBG | JSCJ | SMBG | 2,990 | ₹14.78 · 2,990 in stock | View |
 | SS510L(SMBG)#C5356750JSCJ · SMBG | JSCJ | SMBG | On request | ₹17.19 · 0 in stock | View |
