SiproinDatasheet (PDF)

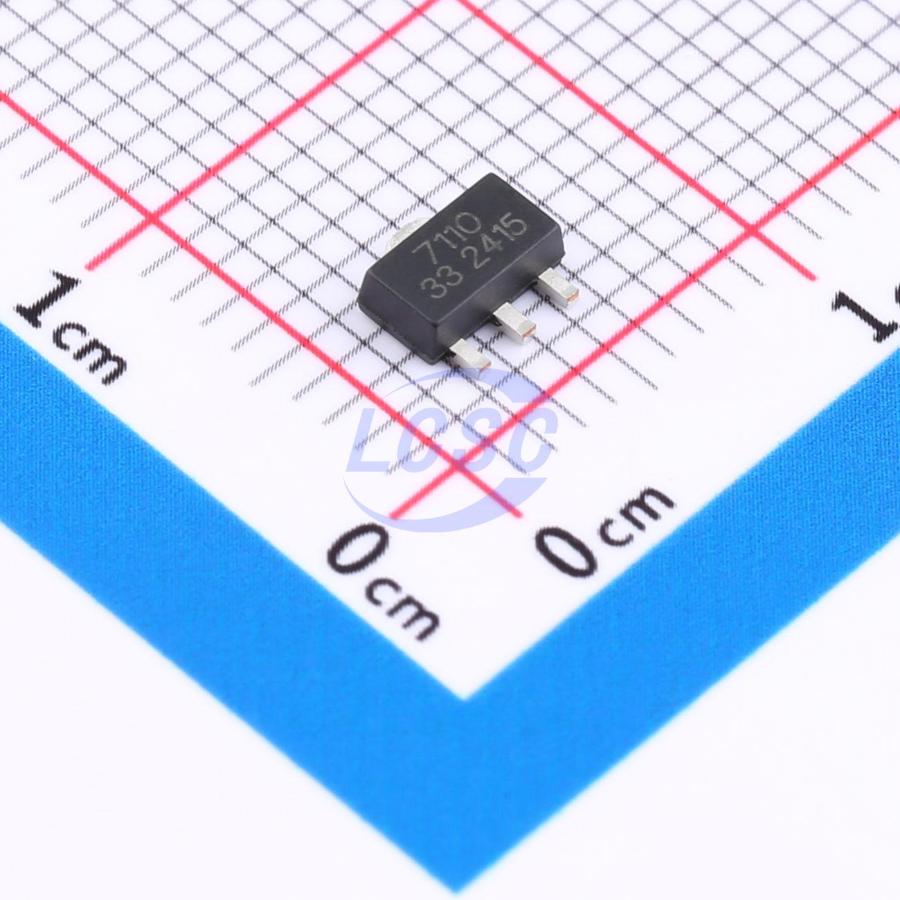

SSP1117-3.3V
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
IC REG LINEAR 3.3V 1A SOT-89-3
- Manufacturer
- Siproin
- Manufacturer part #
- SSP1117-3.3V
- Store part #
- C49332772
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,230 in stock
#C49332772
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.22 | ₹72.20 |
| 100+ | ₹5.77 | ₹577.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 1,000+ | ₹4.50 | ₹4,500.00 |
| 5,000+ | ₹4.05 | ₹20,250.00 |
| 10,000+ | ₹3.84 | ₹38,400.00 |
10 × ₹7.22
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SSP1117-3.3V
₹72.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.162 g
Overview
SSP1117 is a series of low dropout regulators with a 1.3V dropout voltage at 1A load current. The quiescent current is extremely low at a typical value of 2mA, compared to 5mA for competing devices. In addition to fixed output voltage versions (including 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the SSP1117 also offers an adjustable version that provides output voltages from 1.25V to 12V using only two external resistors. The series features thermal shutdown to ensure stability of the die and power supply system. Trimming technology is employed to guarantee output voltage accuracy within 2%. Other output voltage accuracies, such as 1%, are available upon request. The SSP1117 is offered in SOT-223, TO-252, and SOT89-3 power packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and liquid crystal TVs
- DVD decoder boards
- ADSL modems
- Post-stage regulators in switching power supplies
Key features
- Maximum output current: 1.0A
- Operating input voltage range: up to 24V
- Line regulation: 0.01%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Available in SOT-223, TO-252, SOT89-3 packages
