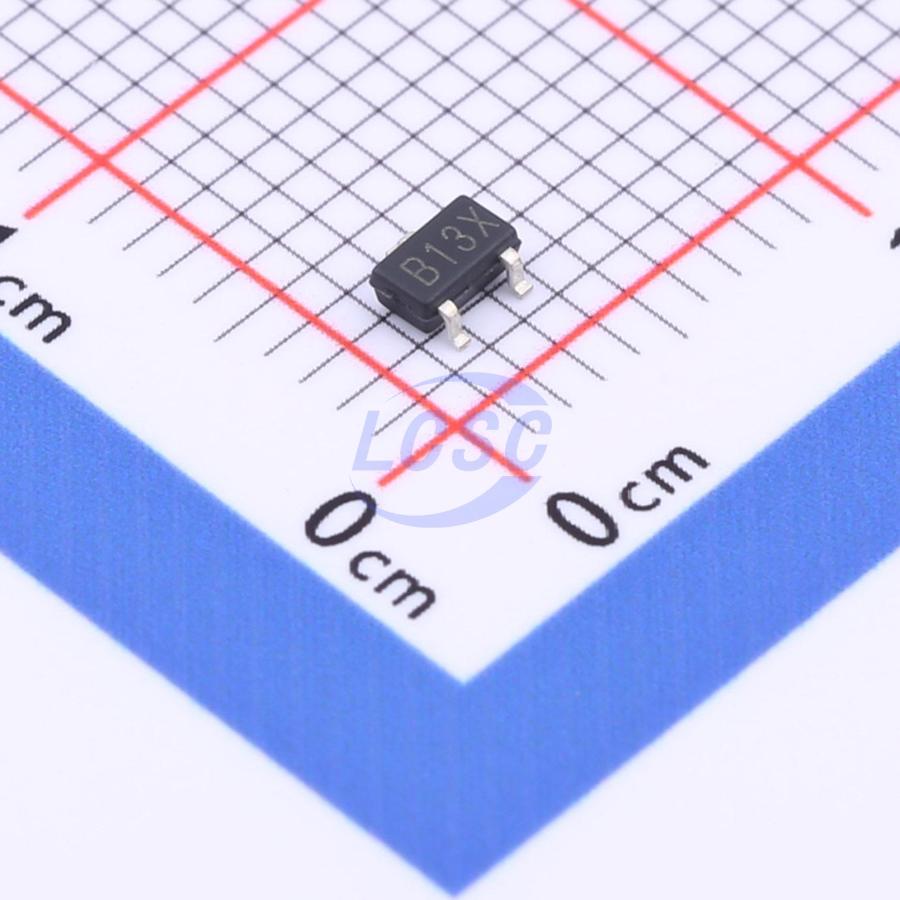

SSP61CC1102MR

The SSP61C series devices are a set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 0.9V to 5.0V. The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator, hysteresis circuit, and an output driver (CMOS inverter or NMOS open drain). CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.

Applications

• Battery checkers
• Microcomputer reset
• Level selectors
• Battery memory backup
• Power failure detectors
• Non-volatile RAM signal storage protectors

Key features

• Low power consumption
• High input voltage (up to 8V)
• Low temperature coefficient
• Output voltage accuracy: tolerance ±1% or ±2%
• Built-in hysteresis characteristic
• SOT23-3 and SOT23 package
