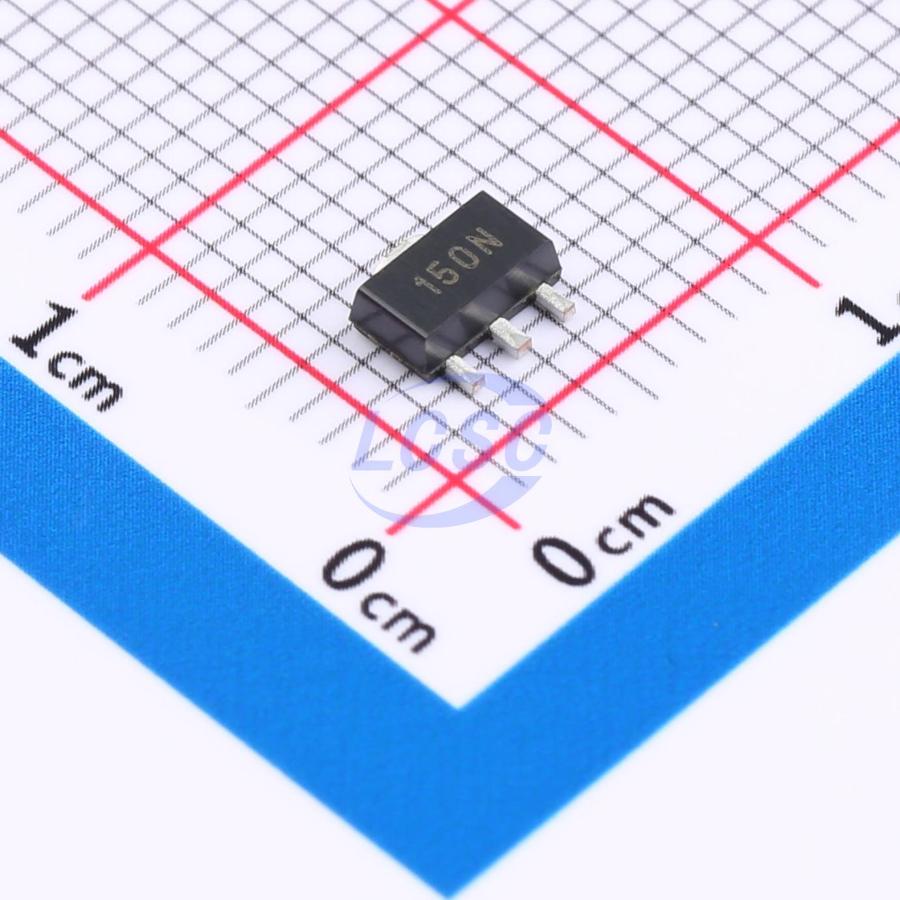

SSP6201P502PR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
250mA、12V、LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP6201P502PR
- Store part #
- C330932
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,125 in stock
#C330932
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.25 | ₹81.25 |
| 50+ | ₹12.85 | ₹642.50 |
| 150+ | ₹11.15 | ₹1,672.50 |
| 1,000+ | ₹9.84 | ₹9,840.00 |
| 2,000+ | ₹8.82 | ₹17,640.00 |
| 5,000+ | ₹8.32 | ₹41,600.00 |
5 × ₹16.25
₹81.25
excl. GST
₹95.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SSP6201P502PR
₹81.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 15V
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The SSP6201 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP6201 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-89-3L packages is available.
Applications
- Battery-powered equipment
- Hand-Hold Equipment
- GPS Receivers
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- High input voltage: 12V
- Low temperature coefficient
- MAX Output Current: 0.5A
- Low Quiescent Current: 2.0uA
- Output voltage accuracy: tolerance ±2%
- Built-in current limiter
- SOT-89-3L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7603P50PR#C411027Siproin · SOT-89-3 | Siproin | SOT-89-3 | 705 | ₹17.68 · 705 in stock | View |
 | SSP7903P50PR#C2965588Siproin · SOT-89 | Siproin | SOT-89 | 1,590 | ₹31.41 · 1,590 in stock | View |
 | SSP1117-5.0V#C49332824Siproin · SOT-89-3 | Siproin | SOT-89-3 | 620 | ₹6.96 · 620 in stock | View |
