Siproin

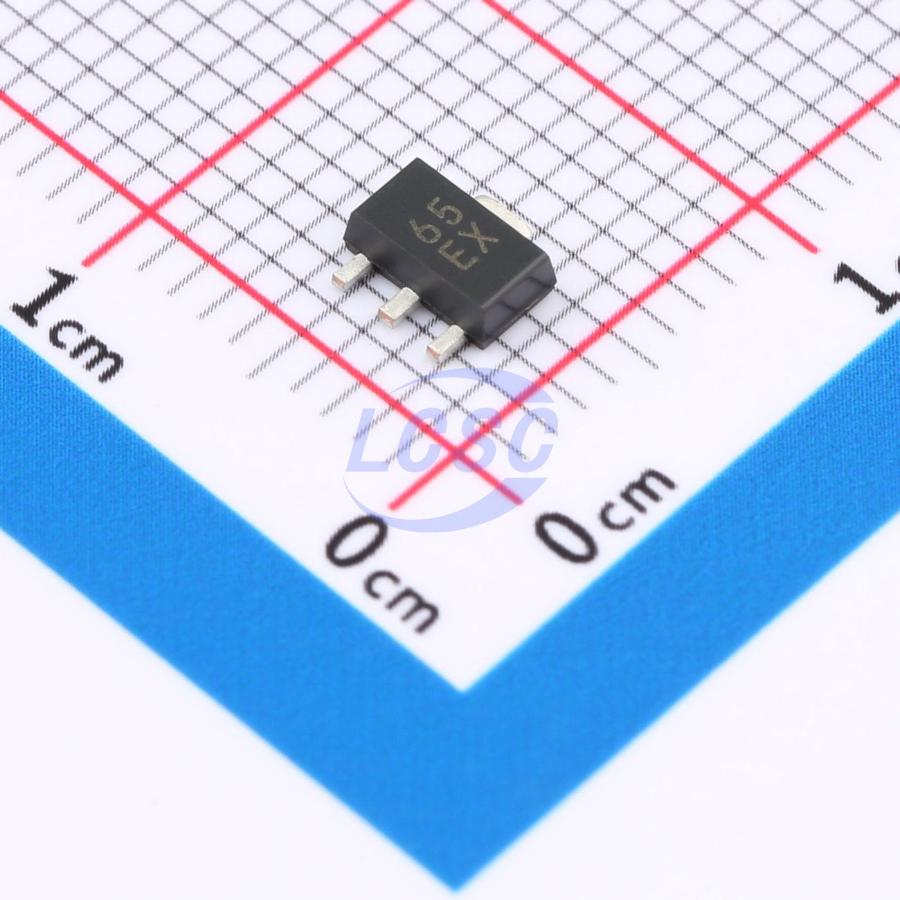

SSP6206-15PR

1.5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-89ROHS CompliantActive

300mA Low Power LDO

Manufacturer: Siproin
Manufacturer part #: SSP6206-15PR
Store part #: C277886
Package / case: SOT-89
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,560 in stock

#C277886

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.17	₹50.85
50+	₹8.10	₹405.00
150+	₹7.05	₹1,057.50
1,000+	₹6.03	₹6,030.00
2,000+	₹5.41	₹10,820.00
5,000+	₹5.11	₹25,550.00

Quantity (min 5, multiples of 5)

5 × ₹10.17

₹50.85

excl. GST

₹60.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

SSP6206-15PR

₹50.85 for 5 + GST

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 3.5uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 8V
Features: Short Circuit Protection;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.08 g

Overview

SSP6206 series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The SSP6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SSP6206 series are available in SOT-23, SOT23-3 and SOT89 packages.
