SiproinDatasheet (PDF)

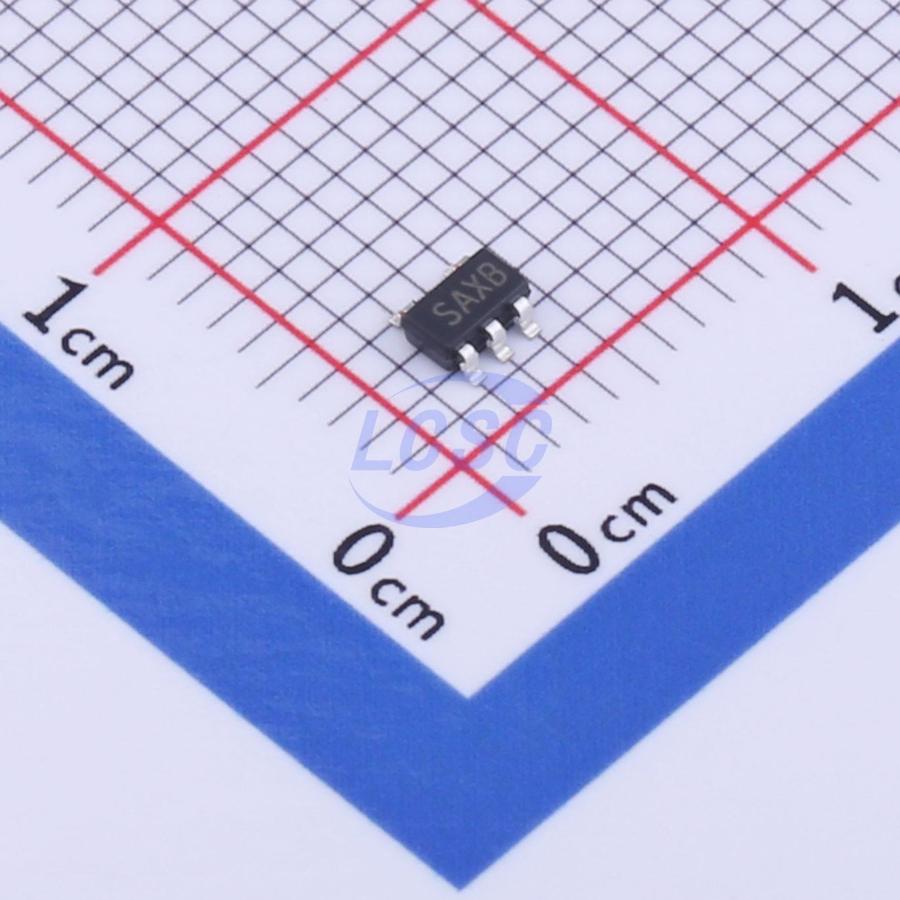

SSP7603P33M5R
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7603P33M5R
- Store part #
- C411031
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,395 in stock
#C411031
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.75 | ₹83.75 |
| 50+ | ₹13.73 | ₹686.50 |
| 150+ | ₹12.24 | ₹1,836.00 |
| 500+ | ₹11.10 | ₹5,550.00 |
| 3,000+ | ₹10.07 | ₹30,210.00 |
| 6,000+ | ₹9.60 | ₹57,600.00 |
5 × ₹16.75
₹83.75
excl. GST
₹98.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP7603P33M5R
₹83.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 15V
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The SSP7603 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7603 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- Low Quiescent Current: 1.5uA
- High input voltage: 15V
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- Built-in current limiter
- Large Output Current: 0.5A
- SOT89-3, SOT23-3 and SOT23-5 packages
