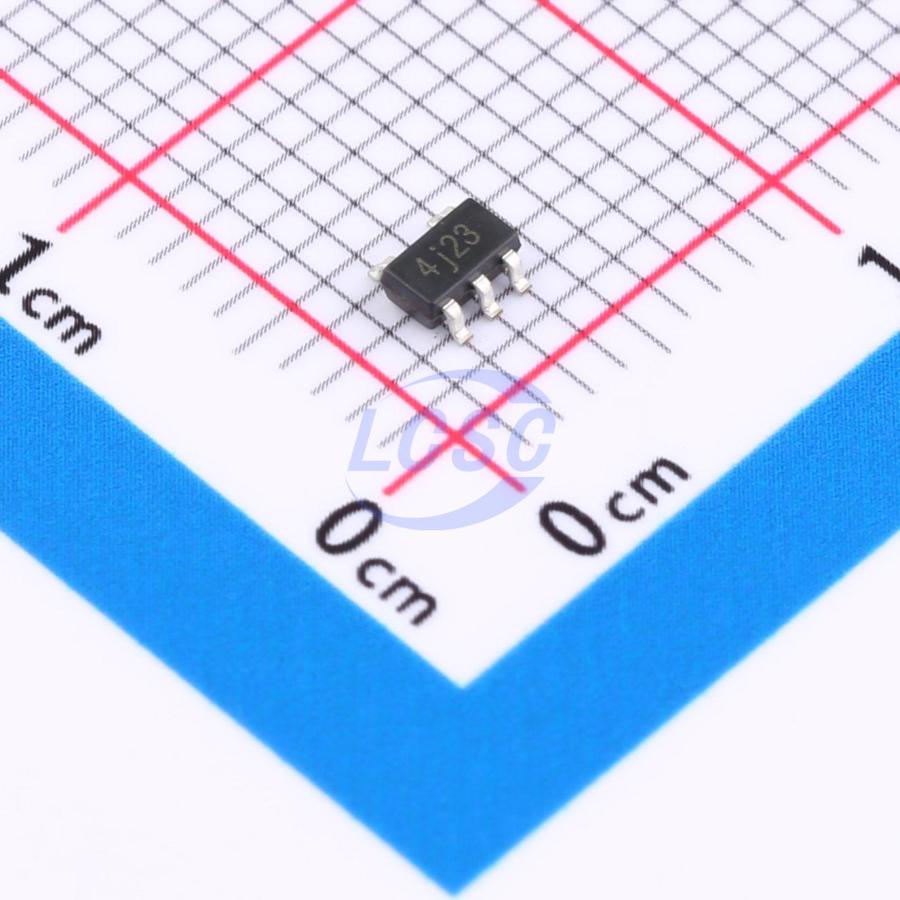

SSP7615-18M5R
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 1.8V SOT-23-5
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7615-18M5R
- Store part #
- C49331823
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C49331823
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.42 | ₹62.10 |
| 50+ | ₹9.82 | ₹491.00 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹12.42
₹62.10
excl. GST
₹73.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP7615-18M5R
₹62.10 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Output Current
- 400mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The SSP7615 is a high-precision, low-noise, high-speed CMOS LDO linear regulator featuring low power consumption and low dropout characteristics, capable of delivering high output current even with minimal input-to-output voltage differential. The foldback mechanism in its current limiting circuit provides short-circuit protection and output pin current limiting. The device is available in standard SOT23-3, SOT23-5, and DFN1×1-4 package options. Standard products comply with lead-free and halogen-free requirements.
Applications
- Wireless control systems
- Mobile phones, cordless phones, digital cameras
- Bluetooth devices, wireless handheld terminals
- Other portable consumer electronics
Key features
- Input voltage range: 1.5V ~ 8V
- Output voltage range: 1.2V ~ 5.0V
- Maximum output current: 400mA @ VOUT=3.3V
- Power supply rejection ratio: 60dB @ 1GHz
- Dropout voltage: 200mV @ IOUT=100mA
- Typical quiescent current: 0.5μA
- Shutdown current: < 1μA
- Recommended capacitor: 1μF
- Built-in short-circuit protection and current limiting circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H7218-1M5R#C49331821Siproin · SOT-23-5 | Siproin | SOT-23-5 | 2,975 | ₹14.90 · 2,975 in stock | View |
