SiproinDatasheet (PDF)

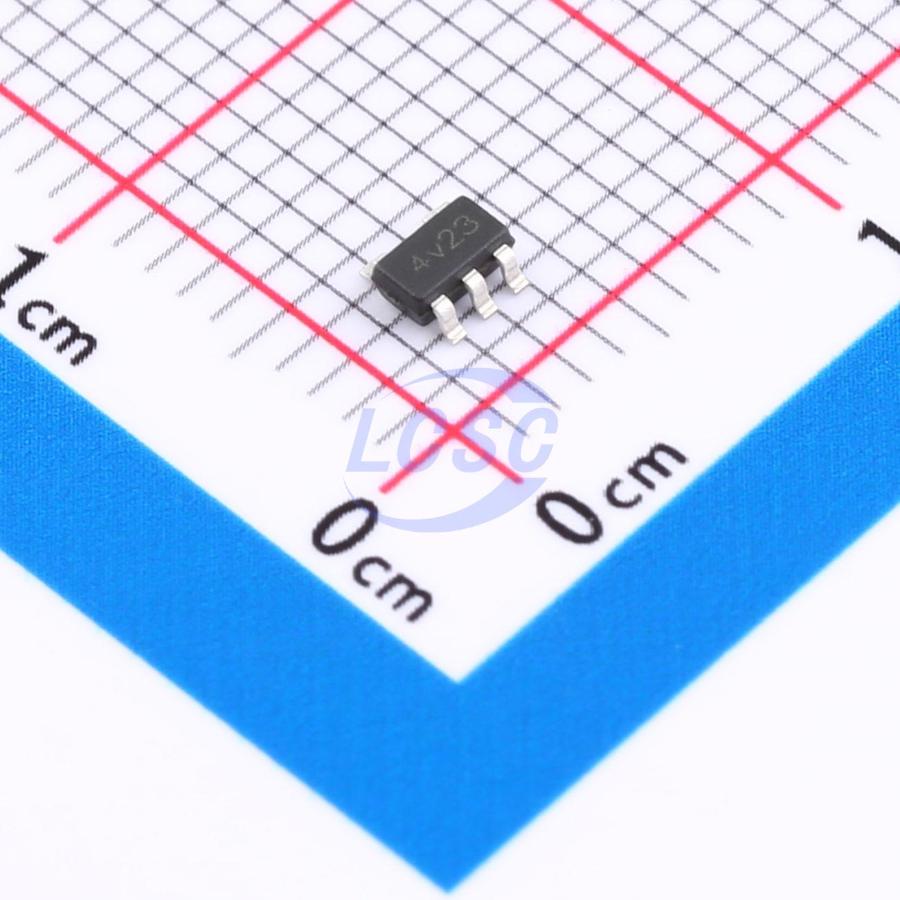

SSP7615-30M5R
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
CMOS Linear regulator
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7615-30M5R
- Store part #
- C45359467
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C45359467
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.09 | ₹60.45 |
| 50+ | ₹9.57 | ₹478.50 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.34 | ₹3,670.00 |
| 3,000+ | ₹6.59 | ₹19,770.00 |
| 6,000+ | ₹6.20 | ₹37,200.00 |
5 × ₹12.09
₹60.45
excl. GST
₹71.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP7615-30M5R
₹60.45 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The SSP7615 is a high accuracy, low noise, high speed CMOS Linear regulator with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The SSP7615 regulators are available in standard SOT23-3, SOT23-5 and DFN 1x1 - 4 packages. Standard products are Pb-free and Halogen-free.
Applications
- Radio control systems
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable consumer equipments
Key features
- Input voltage: 1.5V~8V
- Output range: 1.2V~5.0V
- Maximum output current: 400mA @ VOUT = 3.3V
- PSRR: 60dB @ 1KHz
- Dropout voltage: 200mV @ IOUT = 100mA
- Quiescent current: 0.5μA Typ.
- Shut-down current: < 1μA
- Recommend capacitor: 1μF
- Built-in Short-Circuit Protection, Current Limiter
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H7230-1M5R#C2965593Siproin · SOT-23-5 | Siproin | SOT-23-5 | 1,930 | ₹16.02 · 1,930 in stock | View |
 | SSP7603P30M5R#C411030Siproin · SOT-23-5 | Siproin | SOT-23-5 | 4,170 | ₹16.91 · 4,170 in stock | View |
