SiproinDatasheet (PDF)

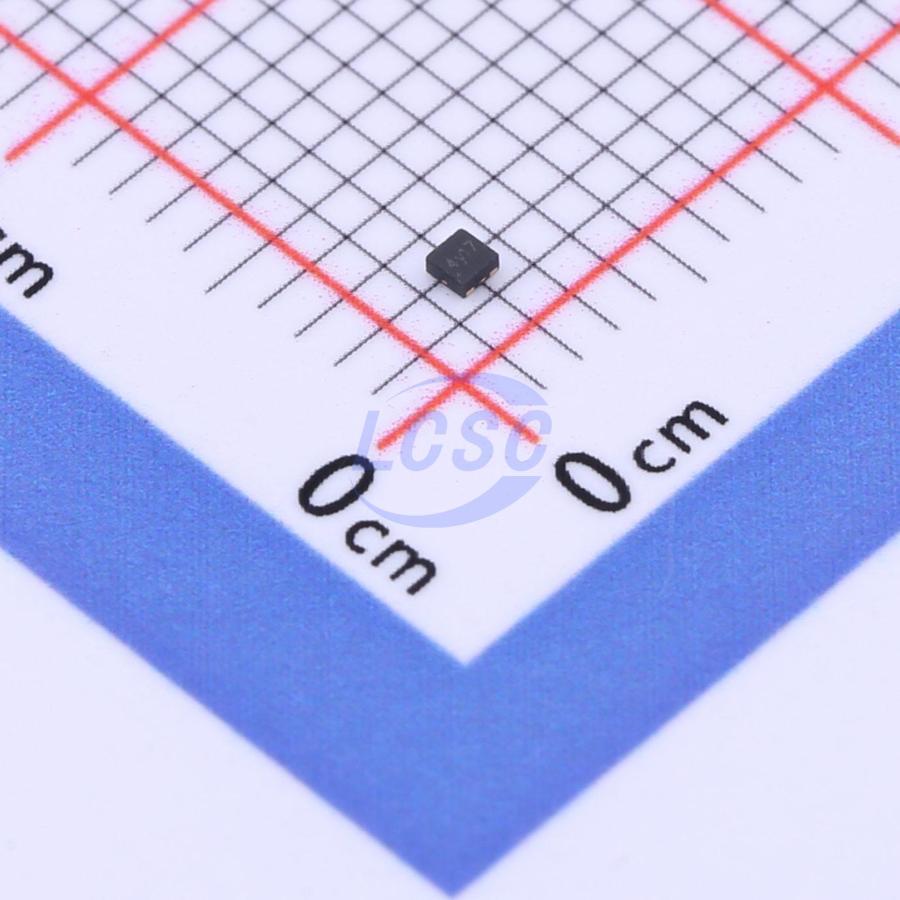

SSP7615-33DFR
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA DFN-4(1x1)
DFN-4(1x1)RoHSActive
High Accuracy, Low Noise, High Speed CMOS Linear Regulator
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7615-33DFR
- Store part #
- C3011523
- Package / case
- DFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,500 in stock
#C3011523
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.06 | ₹65.30 |
| 50+ | ₹10.56 | ₹528.00 |
| 150+ | ₹9.30 | ₹1,395.00 |
| 500+ | ₹8.36 | ₹4,180.00 |
| 2,500+ | ₹7.04 | ₹17,600.00 |
| 5,000+ | ₹6.67 | ₹33,350.00 |
5 × ₹13.06
₹65.30
excl. GST
₹77.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SSP7615-33DFR
₹65.30 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 450nA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.004 g
Overview
The SSP7615 is a high accuracy, low noise, high speed CMOS Linear regulator with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The SSP7615 regulators are available in standard SOT23-3, SOT23-5 and DFN 1×1.4 packages. Standard products are Pb-free and Halogen-free.
Applications
- Radio control systems
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable consumer equipments
Key features
- Input voltage: 1.5V~8V
- Output range: 1.2V~5.0V
- Maximum output current: 400mA @ VOUT = 3.3V
- PSRR: 60dB @ 1KHz
- Dropout voltage: 200mV @ IOUT = 100mA
- Quiescent current: 0.5μA Typ.
- Shut-down current: <1μA
- Recommend capacitor: 1μF
- Built-in Short-Circuit Protection, Current Limiter
