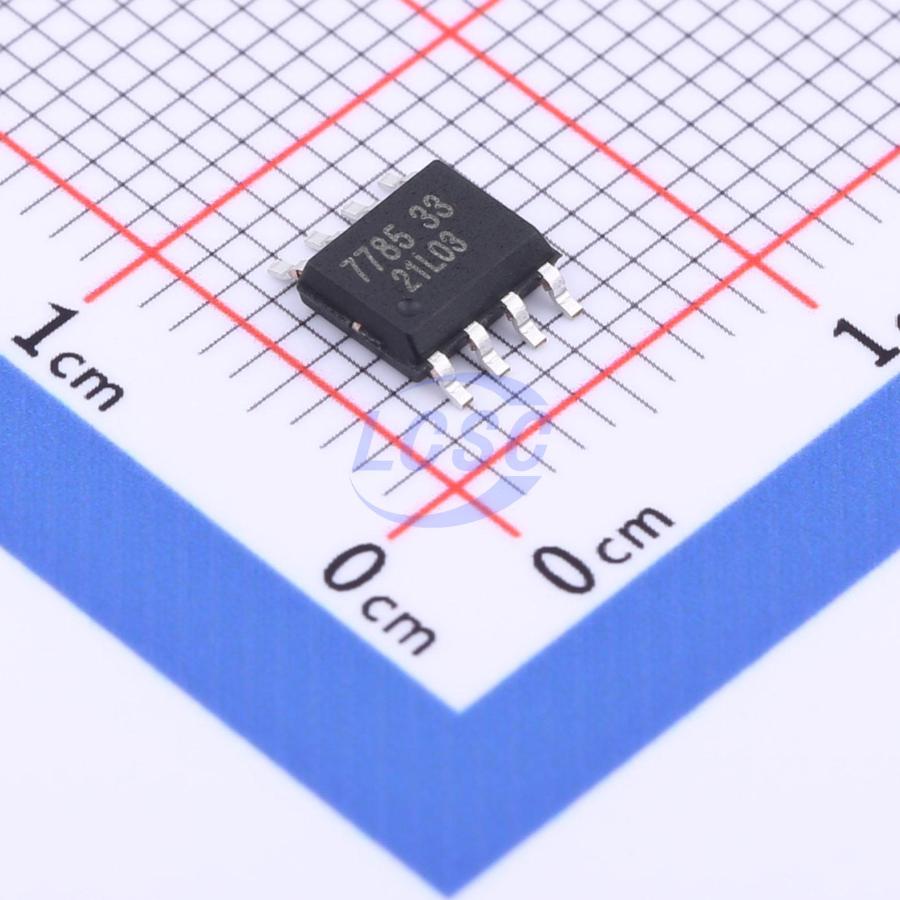

SSP7785-3.3V
3.3V Positive Fixed ESOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
ESOP-8RoHSActive
Wide Input Voltage Range 10mA Ultra-Low lg High PSRR Linear Regulator
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7785-3.3V
- Store part #
- C2845051
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,575 in stock
#C2845051
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.61 | ₹93.05 |
| 50+ | ₹16.34 | ₹817.00 |
| 150+ | ₹15.36 | ₹2,304.00 |
| 500+ | ₹14.14 | ₹7,070.00 |
| 2,500+ | ₹12.95 | ₹32,375.00 |
| 4,000+ | ₹12.62 | ₹50,480.00 |
5 × ₹18.61
₹93.05
excl. GST
₹109.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP7785-3.3V
₹93.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 16uA
- Output Configuration
- Positive
- Output Current
- 10mA
- Operating Voltage
- 450V
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.199 g
Overview
The SSP7785 is a high−performance linear regulator, offering a very wide operating input voltage range of up to 450 V DC, with an output current of up to 10 mA. Ideal for high input voltage applications such as industrial and home metering, home appliances. The SSP7785 family offers ±5% initial accuracy, extremely high−power supply rejection ratio and ultra−low quiescent current. The SSP7785 is optimized for high−voltage line and load transients, making this part ideal for harsh environment applications.
Applications
- Industrial Applications, Home Appliances
- Home Metering / Network Application
- Off−line Power Supplies
Key features
- Wide Input Voltage Range:
- DC: Up to 450 V
- AC: 85 V to 260 V (half−wave rectifier and 2.2 μF capacitor)
- 10 mA Guaranteed Output Current
- Ultra Low Quiescent Current: Typ. 10 μA (VOUT ≤ 5 V)
- ±5% Accuracy Over Full Load, Line and Temperature Variations
- Ultra−high PSRR: 70 dB at 60 Hz, 90 dB at 100 kHz
- Stable with Ceramic Output Capacitor 22 μF MLCC
- Thermal Shutdown and Current Limit Protection
- Available in Thermally Enhanced ESOP8 Package
- This is a Pb−Free Device
