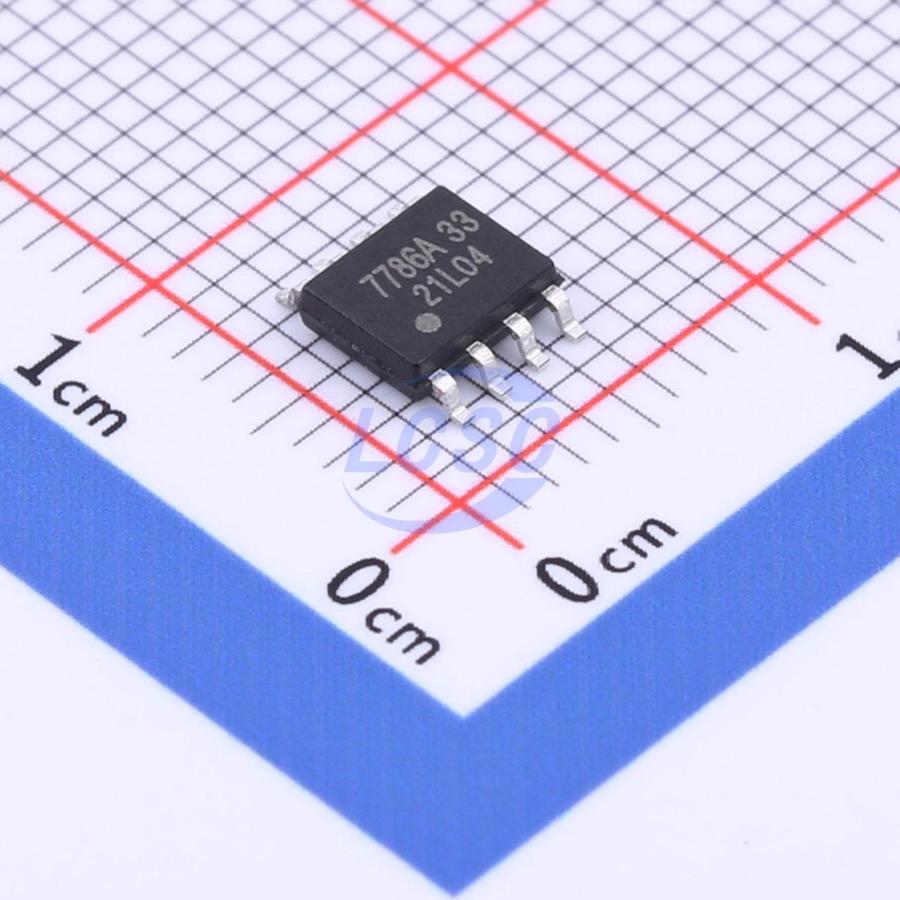

SSP7786A-3.3V
3.3V SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOP-8RoHSActive
Offline, Inductor-less AC Linear Regulator
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7786A-3.3V
- Store part #
- C2845054
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,780 in stock
#C2845054
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.80 | ₹139.00 |
| 50+ | ₹21.83 | ₹1,091.50 |
| 150+ | ₹19.26 | ₹2,889.00 |
| 500+ | ₹16.07 | ₹8,035.00 |
| 2,500+ | ₹14.66 | ₹36,650.00 |
| 4,000+ | ₹13.80 | ₹55,200.00 |
5 × ₹27.80
₹139.00
excl. GST
₹164.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP7786A-3.3V
₹139.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Operating Voltage
- 9V
- Output Current
- 160mA
- Features
- Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection;Over Voltage Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
SSP7786A is a compact, inductor- less, offline linear regulator. It steps down the AC line voltage to 5V, 3.3V and 2.7V by internal. It is a simple solution to provide a bias voltage to ICs in offline applications. SSP7786A integrates a 650V power MOSFET, startup control circuit, VDD voltage control circuit, AC signal synchronization detection circuit, low dropout regulator, etc. The chip integrated smart- control system uses AC line power only when necessary, thus minimizing device losses to achieve good efficiency, and effectively reduce the system standby. SSP7786A integrates complete protection functions with self- recovery function: VDD Under Voltage Protection, VDD Over Voltage Protection, output Over Load Protection, output Under Voltage Protection, Lightning Surge Protection and built- in Thermal Shutdown Protection.
Applications
- Smart Meter
- Home Appliance
- Wall Switches and Dimmers
Key features
- High Output Voltage Accuracy: 2%
- Output Voltage internally Setting
- Smart Control to Maximize Efficiency
- Wide Input Voltage Range: 80~305V AC
- No Power Inductor Required
- No Input High-voltage Capacitor Required
- Less Components and Low Cost
- Fast Line and Load Transient Response
- Short Circuit Protection
- Output Under Voltage Protection
- Over Load Protection
- Built-in Thermal Shutdown Protection
- SOP-8, DIP-8 Package
