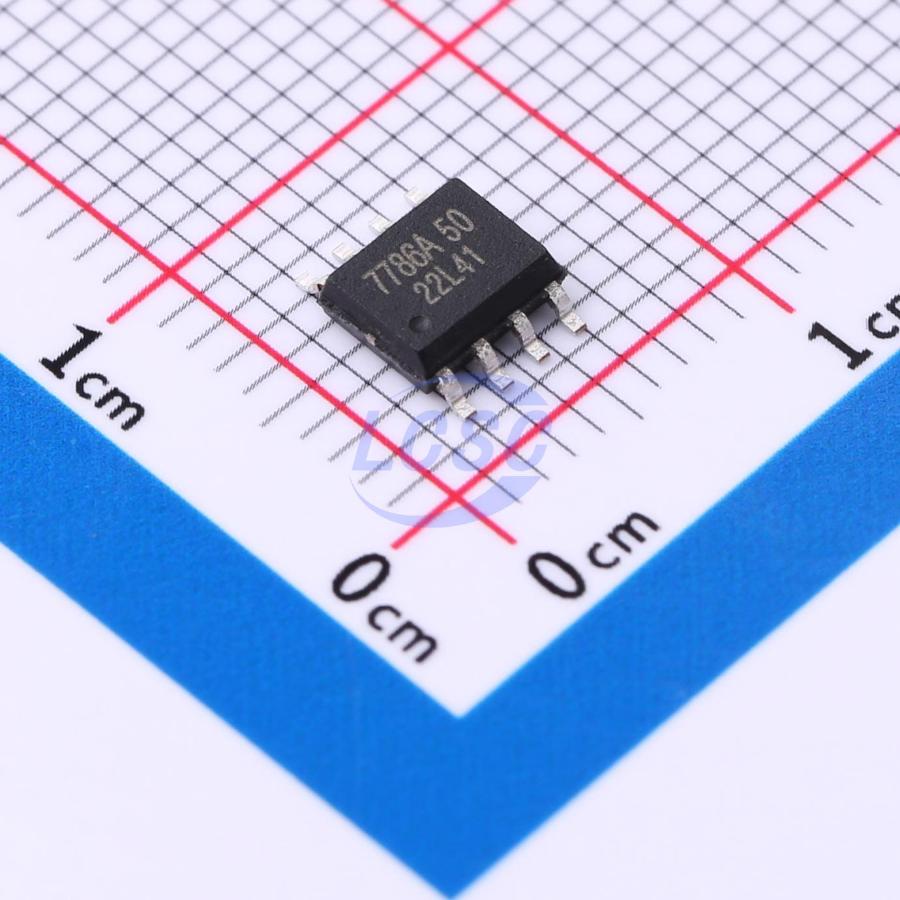

SSP7786A-5.0V
138mA 650V 5V SOP-8 AC DC Converters, Offline Switchers
SOP-8RoHSActive
Offline, Inductor-less AC Linear Regulator
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7786A-5.0V
- Store part #
- C2845055
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C2845055
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.45 | ₹112.25 |
| 50+ | ₹19.94 | ₹997.00 |
| 150+ | ₹18.87 | ₹2,830.50 |
| 500+ | ₹17.52 | ₹8,760.00 |
| 2,500+ | ₹16.26 | ₹40,650.00 |
| 4,000+ | ₹15.90 | ₹63,600.00 |
5 × ₹22.45
₹112.25
excl. GST
₹132.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP7786A-5.0V
₹112.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 138mA
- Voltage - Breakdown
- 650V
- Features
- High voltage direct start;Under-voltage lockout;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection;Over Current Protection
- Output Voltage
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
SSP7786A is a compact, inductor- less, offline linear regulator. It steps down the AC line voltage to 5V, 3.3V and 2.7V by internal. It is a simple solution to provide a bias voltage to ICs in offline applications. SSP7786A integrates a 650V power MOSFET, startup control circuit, VDD voltage control circuit, AC signal synchronization detection circuit, low dropout regulator, etc. The chip integrated smart- control system uses AC line power only when necessary, thus minimizing device losses to achieve good efficiency, and effectively reduce the system standby. SSP7786A integrates complete protection functions with self- recovery function: VDD Under Voltage Protection, VDD Over Voltage Protection, output Over Load Protection, output Under Voltage Protection, Lightning Surge Protection and built- in Thermal Shutdown Protection.
Applications
- Smart Meter
- Home Appliance
- Wall Switches and Dimmers
Key features
- High Output Voltage Accuracy: 2%
- Output Voltage internally Setting
- Smart Control to Maximize Efficiency
- Wide Input Voltage Range: 80~305V AC
- No Power Inductor Required
- No Input High-voltage Capacitor Required
- Less Components and Low Cost
- Fast Line and Load Transient Response
- Short Circuit Protection
- Output Under Voltage Protection
- Over Load Protection
- Built-in Thermal Shutdown Protection
- SOP-8, DIP-8 Package
