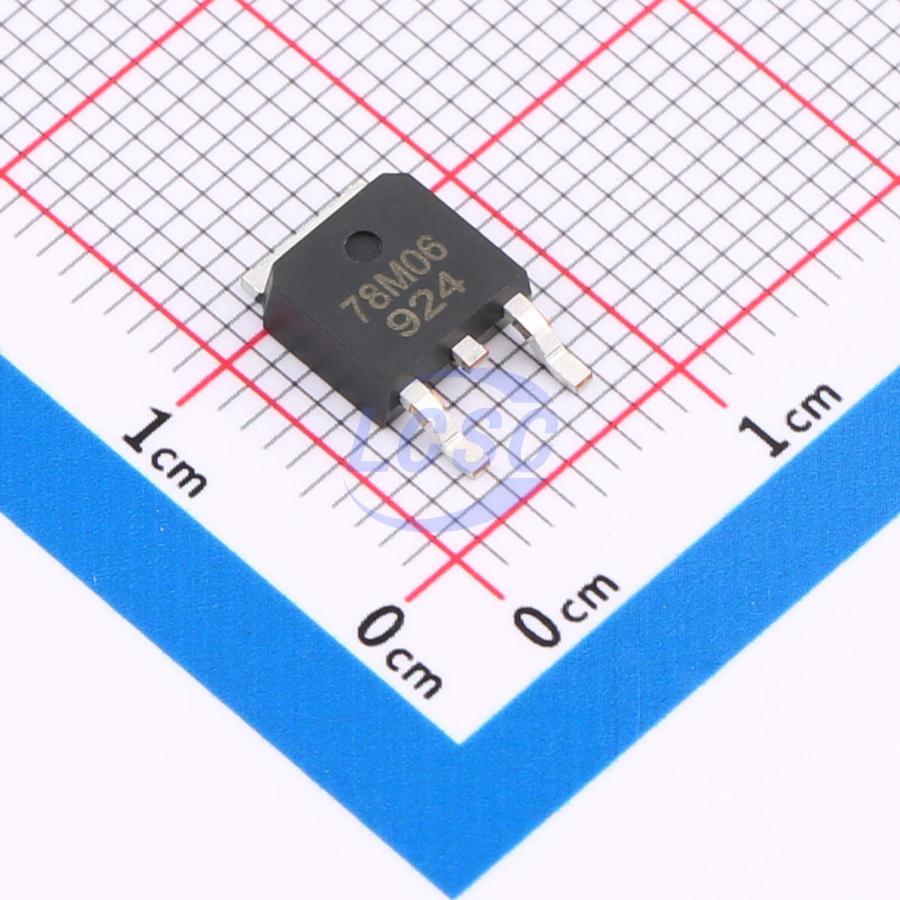

SSP78M06
6V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS CompliantActive
IC REG LINEAR 6V 500mA TO-252
- Manufacturer
- Siproin
- Manufacturer part #
- SSP78M06
- Store part #
- C49331825
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,915 in stock
#C49331825
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.42 | ₹62.10 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 2,500+ | ₹6.76 | ₹16,900.00 |
| 5,000+ | ₹6.38 | ₹31,900.00 |
5 × ₹12.42
₹62.10
excl. GST
₹73.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SSP78M06
₹62.10 for 5 + GST
Specifications
- Output Voltage
- 6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 5.5mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.47 g
Overview
SSP78MXX is a three-terminal positive voltage regulator IC with an internal regulation circuit capable of delivering 500mA output current. The IC integrates an adjustment circuit with internal current limiting and thermal overload protection, making it essentially immune to load overload conditions. An internal Zener diode and resistor combination design effectively improves output impedance while reducing quiescent current.
Key features
- Output current: 500mA
- Maximum input voltage: 35V
- Thermal overload protection
- Short-circuit protection
- Output transistor safe operating area protection
- Package: TO252
- Output voltage accuracy: ±5% tolerance
