SiproinDatasheet (PDF)

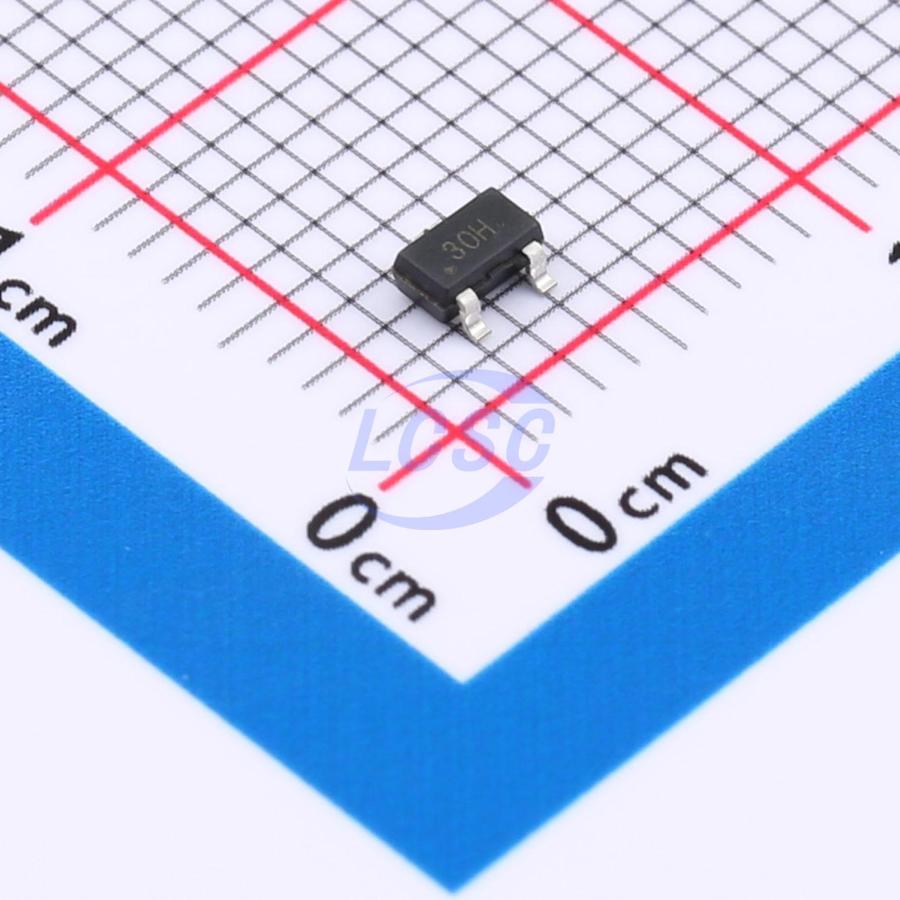

SSP7901P30MR
3V Positive Fixed SOT23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT23-3RoHSActive
High Voltage Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7901P30MR
- Store part #
- C7424769
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C7424769
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.73 | ₹68.65 |
| 50+ | ₹10.80 | ₹540.00 |
| 150+ | ₹9.31 | ₹1,396.50 |
| 500+ | ₹8.22 | ₹4,110.00 |
| 3,000+ | ₹7.33 | ₹21,990.00 |
| 6,000+ | ₹6.88 | ₹41,280.00 |
5 × ₹13.73
₹68.65
excl. GST
₹81.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP7901P30MR
₹68.65 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The SSP7901 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7901 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
Applications
- Industrial control
- Consumer electronics
- Battery power equipment
- Wireless communication equipment
Key features
- Low Quiescent Current: 1.6μA(type)
- Temperature Stability: ±50ppm/°C
- Max input voltage: 40V
- Output voltage accuracy: tolerance ±2%
- Dropout Voltage: 20mV@Iout=10mA 350mV@Iout=100mA
- Max Output Current: 300mA
- Protections Circuits: Current Limiter, Short Circuit, Thermal shutdown
- Packages: SOT23-3L、SOT23-5L、SOT89-3L、SOT223
