SiproinDatasheet (PDF)

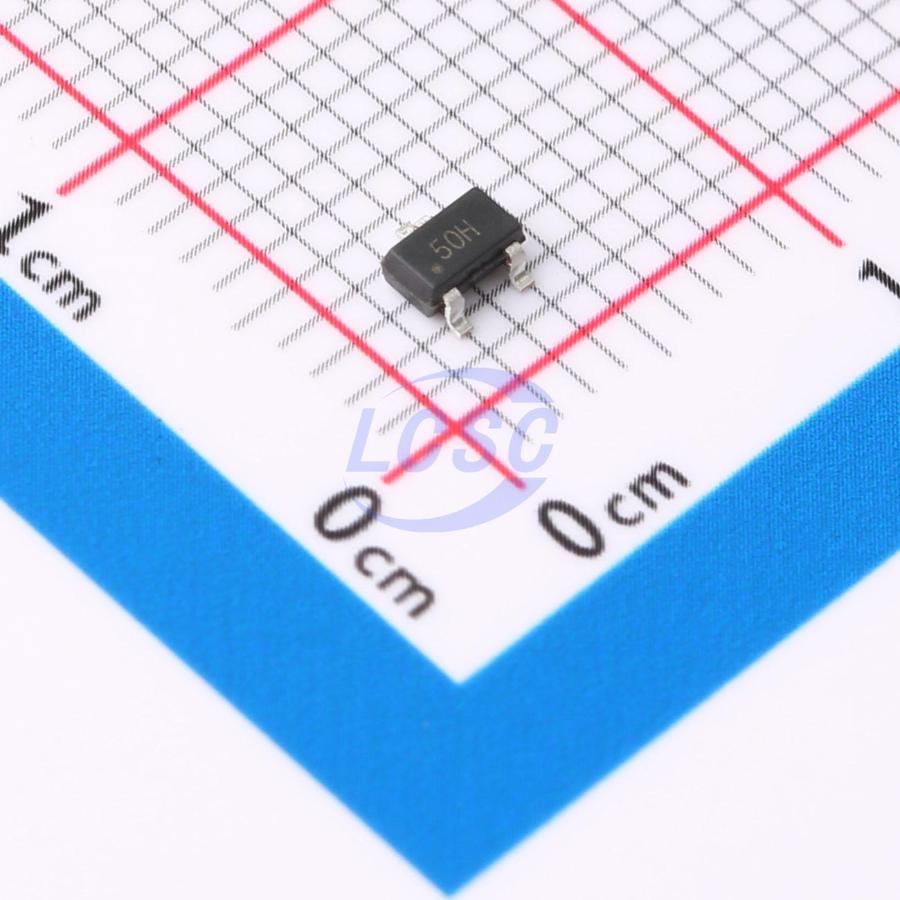

SSP7901P50MR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT23-3
SOT23-3RoHSActive
300mA, 40V low-power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7901P50MR
- Store part #
- C7424771
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C7424771
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.96 | ₹79.80 |
| 50+ | ₹12.82 | ₹641.00 |
| 150+ | ₹11.26 | ₹1,689.00 |
| 500+ | ₹10.08 | ₹5,040.00 |
| 3,000+ | ₹9.14 | ₹27,420.00 |
| 6,000+ | ₹8.68 | ₹52,080.00 |
5 × ₹15.96
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP7901P50MR
₹79.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The SSP7901 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7901 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
Applications
- Industrial control
- Consumer electronics
- Battery power equipment
- Wireless communication equipment
Key features
- Low Quiescent Current: 1.6μA(type)
- Temperature Stability: ±50ppm/°C
- Max input voltage: 40V
- Output voltage accuracy: tolerance ±2%
- Dropout Voltage: 20mV@Iout=10mA 350mV@Iout=100mA
- Max Output Current: 300mA
- Protections Circuits: Current Limiter, Short Circuit, Thermal shutdown
- Packages: SOT23-3L、SOT23-5L、SOT89-3L、SOT223
