SiproinDatasheet (PDF)

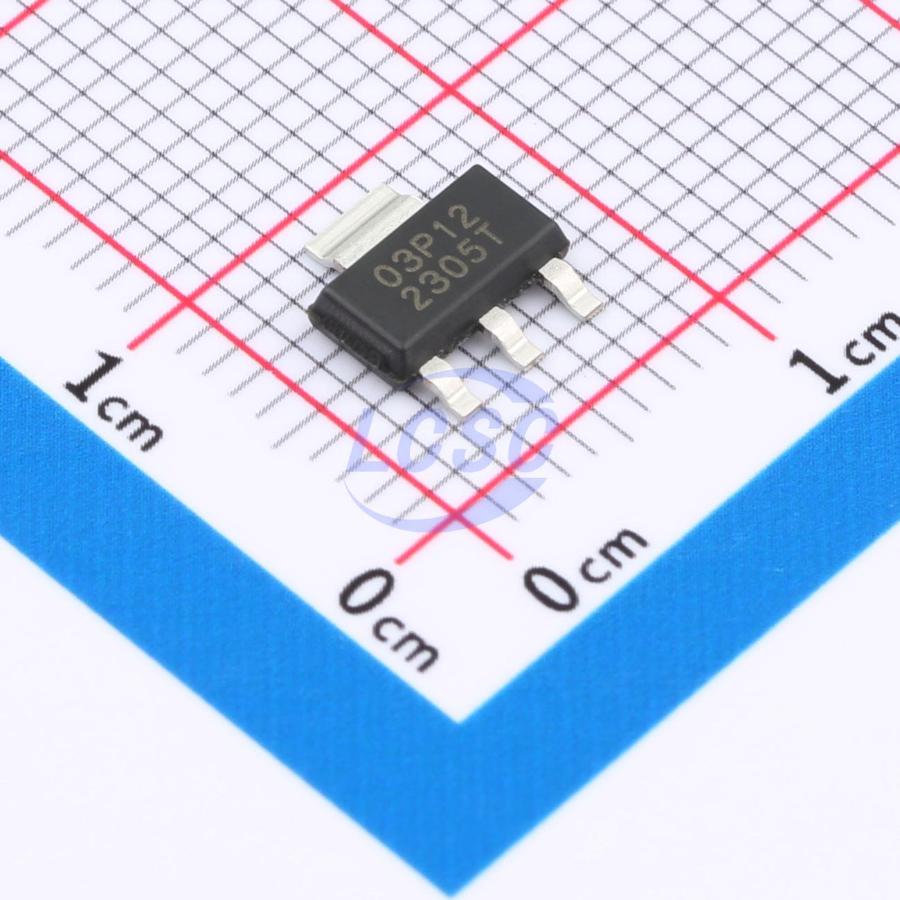

SSP7903P12FR
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
Low-power LDO with 40V input voltage withstand and 1A load current
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7903P12FR
- Store part #
- C45359464
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,865 in stock
#C45359464
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.75 | ₹93.75 |
| 50+ | ₹16.37 | ₹818.50 |
| 150+ | ₹15.36 | ₹2,304.00 |
| 500+ | ₹14.09 | ₹7,045.00 |
| 2,500+ | ₹13.52 | ₹33,800.00 |
| 5,000+ | ₹13.18 | ₹65,900.00 |
5 × ₹18.75
₹93.75
excl. GST
₹110.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SSP7903P12FR
₹93.75 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.281 g
Overview
The SSP7903 series are positive voltage output, three-terminal regulators capable of delivering high current even with small input/output voltage differentials. Low power consumption and high accuracy are achieved through the use of CMOS and laser trimming technologies. These devices consist of a high-precision voltage reference, an error amplifier circuit, and a current-limiting output driver. Transient response to load variations is improved compared to existing series.
Applications
- Industrial Control
- Smart Meters & Instrumentation
- Battery-Powered Devices
- Wireless Communication Equipment
- Automotive Electronics
Key features
- Low quiescent current: 1.6μA typical
- Temperature stability: ±50ppm/℃
- High input voltage: 40V
- Output voltage accuracy: ±2% tolerance
- Low temperature drift coefficient
- Dropout voltage: 20mV @ IOUT=10mA
- Maximum output current: 1A
- Built-in over-temperature protection, overcurrent protection, and output short-circuit protection
- Package: SOT89-3L, SOT223, and TO252
