SiproinDatasheet (PDF)

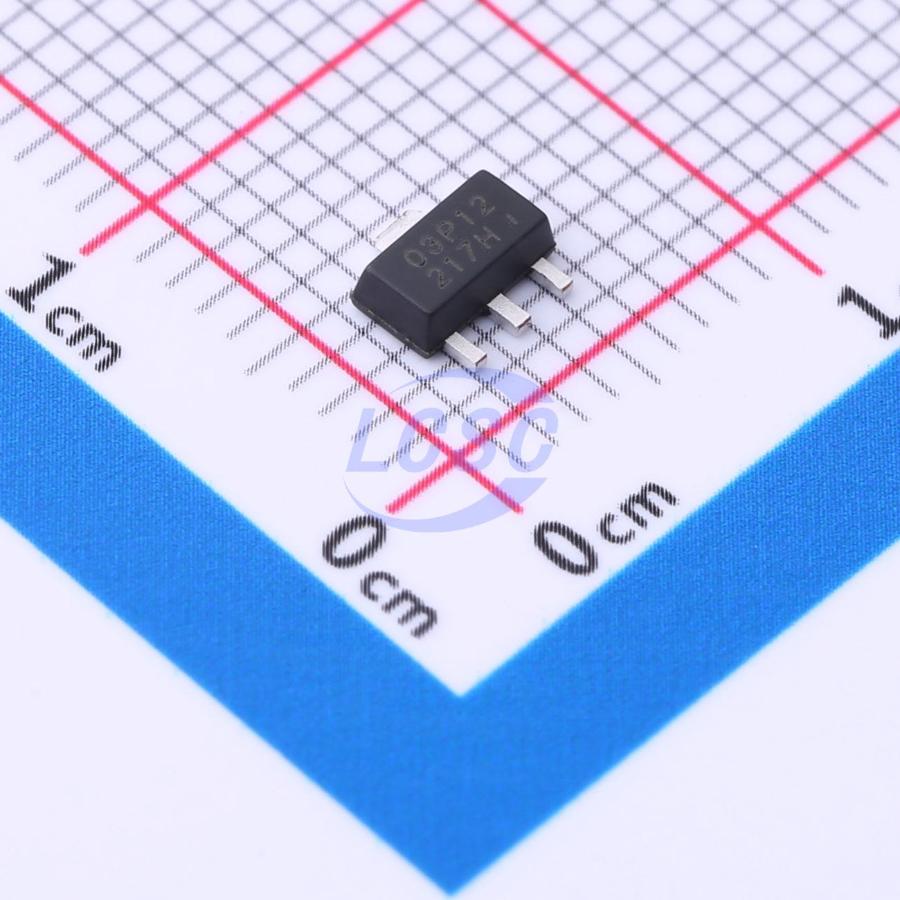

SSP7903P12PR
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-3L
SOT-89-3LRoHSActive
1A 40V low-power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7903P12PR
- Store part #
- C5199833
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C5199833
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.39 | ₹161.95 |
| 50+ | ₹26.01 | ₹1,300.50 |
| 150+ | ₹23.28 | ₹3,492.00 |
| 1,000+ | ₹19.12 | ₹19,120.00 |
| 2,000+ | ₹17.60 | ₹35,200.00 |
| 5,000+ | ₹16.68 | ₹83,400.00 |
5 × ₹32.39
₹161.95
excl. GST
₹191.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SSP7903P12PR
₹161.95 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The SSP7903 series are positive voltage output, three-terminal regulators capable of delivering high current even with small input/output voltage differentials. Low power consumption and high accuracy are achieved through the use of CMOS and laser trimming technologies. These devices consist of a high-precision voltage reference, an error amplifier circuit, and a current-limiting output driver. Transient response to load variations is improved compared to existing series.
Applications
- Industrial Control
- Smart Meters & Instrumentation
- Battery-Powered Devices
- Wireless Communication Equipment
- Automotive Electronics
Key features
- Low quiescent current: 1.6μA typical
- Temperature stability: ±50ppm/℃
- High input voltage: 40V
- Output voltage accuracy: ±2% tolerance
- Low temperature drift coefficient
- Dropout voltage: 20mV @ IOUT=10mA
- Maximum output current: 1A
- Built-in over-temperature protection, overcurrent protection, and output short-circuit protection
- Package: SOT89-3L, SOT223, and TO252
