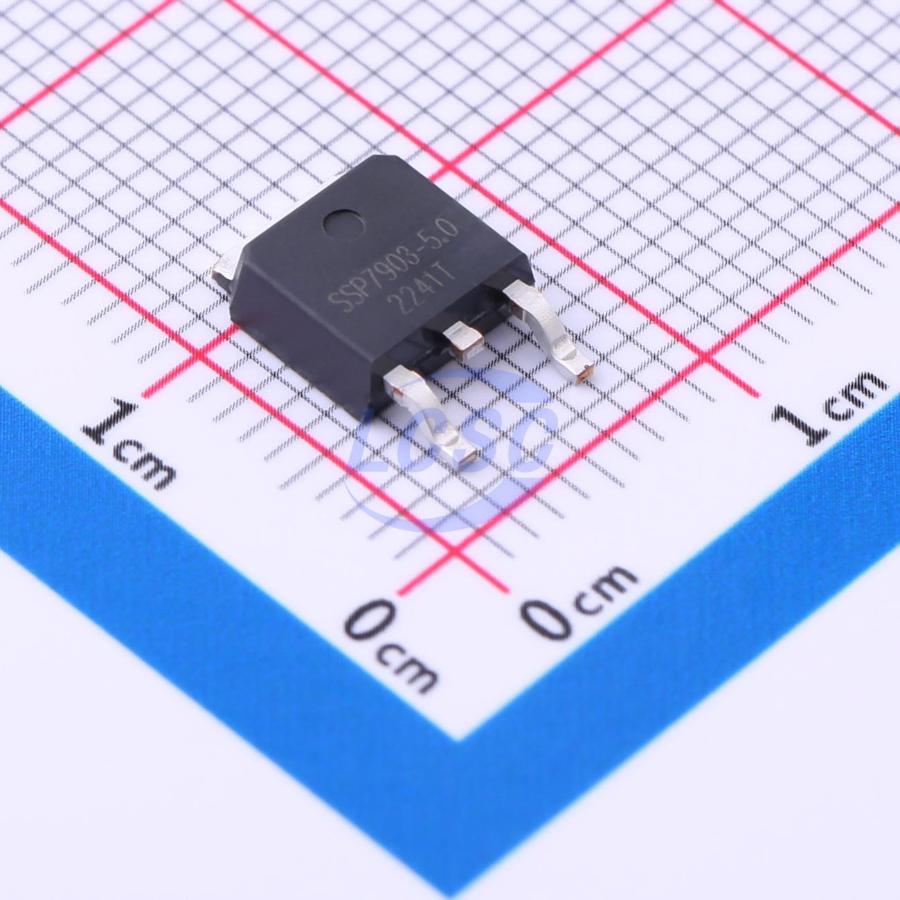

Siproin

SSP7903P50JR

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252

TO-252RoHSActive

1A 40V low-power LDO

Manufacturer: Siproin
Manufacturer part #: SSP7903P50JR
Store part #: C5199837
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,970 in stock

#C5199837

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
5+	₹34.25	₹171.25
50+	₹26.75	₹1,337.50
150+	₹23.54	₹3,531.00
500+	₹19.53	₹9,765.00
2,500+	₹16.86	₹42,150.00
5,000+	₹15.78	₹78,900.00

Quantity (min 5, multiples of 5)

5 × ₹34.25

₹171.25

excl. GST

₹202.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SSP7903P50JR

₹171.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 3uA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1A
Output Type: Fixed
Features: Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.5 g

Overview

The SSP7903 series are positive voltage output, three-terminal regulators capable of delivering high current even with small input/output voltage differentials. Low power consumption and high accuracy are achieved through the use of CMOS and laser trimming technologies. These devices consist of a high-precision voltage reference, an error amplifier circuit, and a current-limiting output driver. Transient response to load variations is improved compared to existing series.

Applications

Industrial Control
Smart Meters & Instrumentation
Battery-Powered Devices
Wireless Communication Equipment
Automotive Electronics

Key features

Low quiescent current: 1.6μA typical
Temperature stability: ±50ppm/℃
High input voltage: 40V
Output voltage accuracy: ±2% tolerance
Low temperature drift coefficient
Dropout voltage: 20mV @ IOUT=10mA
Maximum output current: 1A
Built-in over-temperature protection, overcurrent protection, and output short-circuit protection
Package: SOT89-3L, SOT223, and TO252
