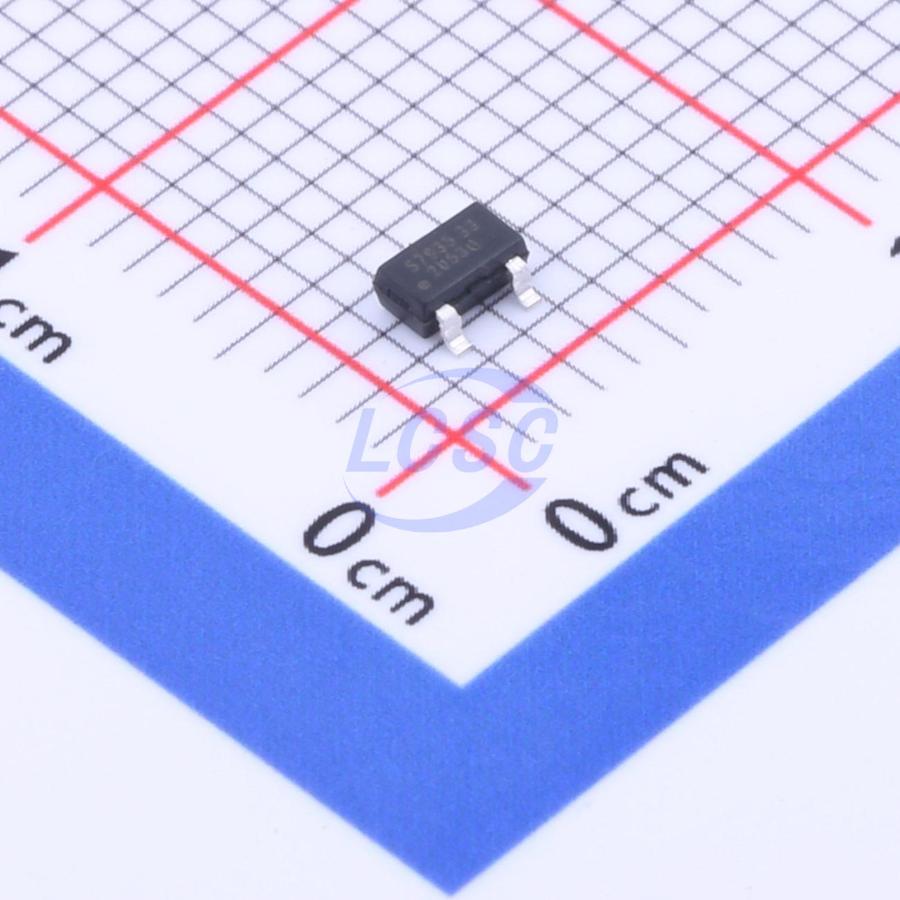

SSP7935P33MR
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
200mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7935P33MR
- Store part #
- C2758013
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,215 in stock
#C2758013
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.89 | ₹69.45 |
| 50+ | ₹10.95 | ₹547.50 |
| 150+ | ₹9.49 | ₹1,423.50 |
| 500+ | ₹8.39 | ₹4,195.00 |
| 3,000+ | ₹7.42 | ₹22,260.00 |
| 6,000+ | ₹6.97 | ₹41,820.00 |
5 × ₹13.89
₹69.45
excl. GST
₹81.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP7935P33MR
₹69.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 30V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.379 g
Overview
The SSP7935 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7935 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- Smoke detector and sensor
- Home Appliance
- Microcontroller Applications
Key features
- High input voltage: 30V
- Low Quiescent Current: 1.6uA
- Low temperature coefficient
- Output voltage accuracy: tolerance ±2%
- Integrated Short-Circuit Protection
- Built-in current limiter
- Large Output Current: 200mA
- SOT89-3, SOT23-3 and SOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7901P33MR#C7424770Siproin · SOT23-3 | Siproin | SOT23-3 | 2,780 | ₹15.96 · 2,780 in stock | View |
