Siproin

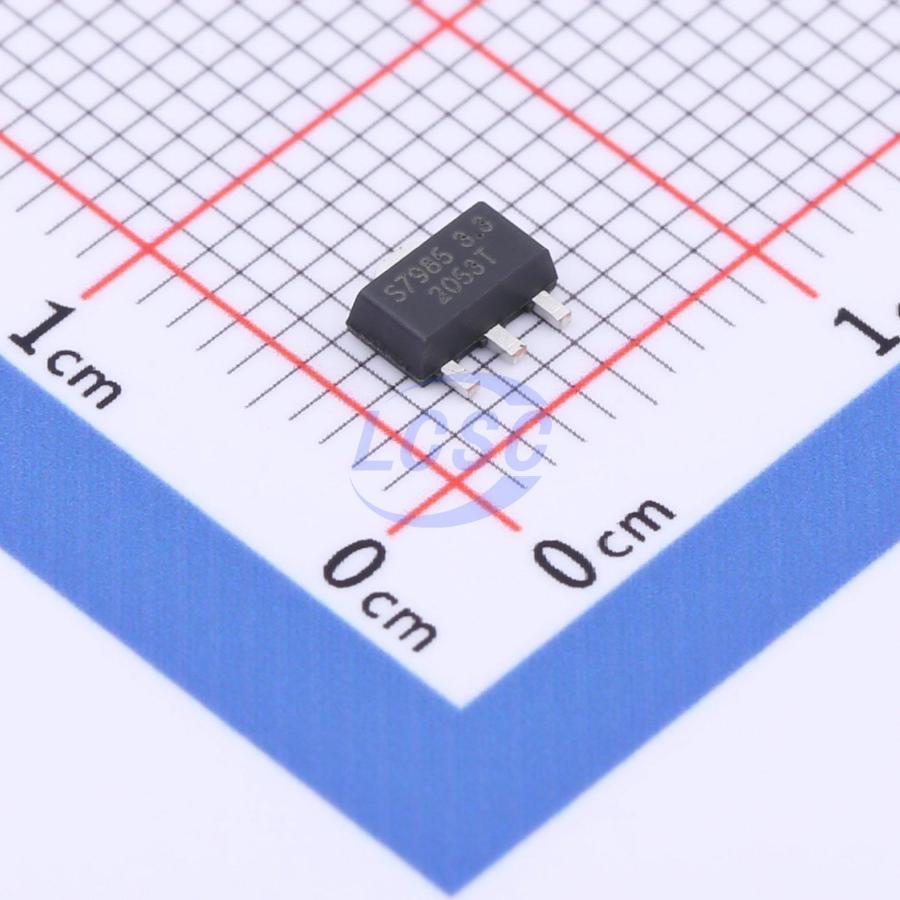

SSP7985P33PR

3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-89-3RoHSActive

150mA Low Power LDO

Manufacturer: Siproin
Manufacturer part #: SSP7985P33PR
Store part #: C2845050
Package / case: SOT-89-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,145 in stock

#C2845050

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.80	₹144.00
50+	₹22.99	₹1,149.50
150+	₹20.51	₹3,076.50
1,000+	₹16.83	₹16,830.00
2,000+	₹15.45	₹30,900.00
5,000+	₹14.62	₹73,100.00

Quantity (min 5, multiples of 5)

5 × ₹28.80

₹144.00

excl. GST

₹169.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

SSP7985P33PR

₹144.00 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 60V
Output Current: 150mA
Features: Short Circuit Protection;Thermal shutdown;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

The SSP7985 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7985 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
