SiproinDatasheet (PDF)

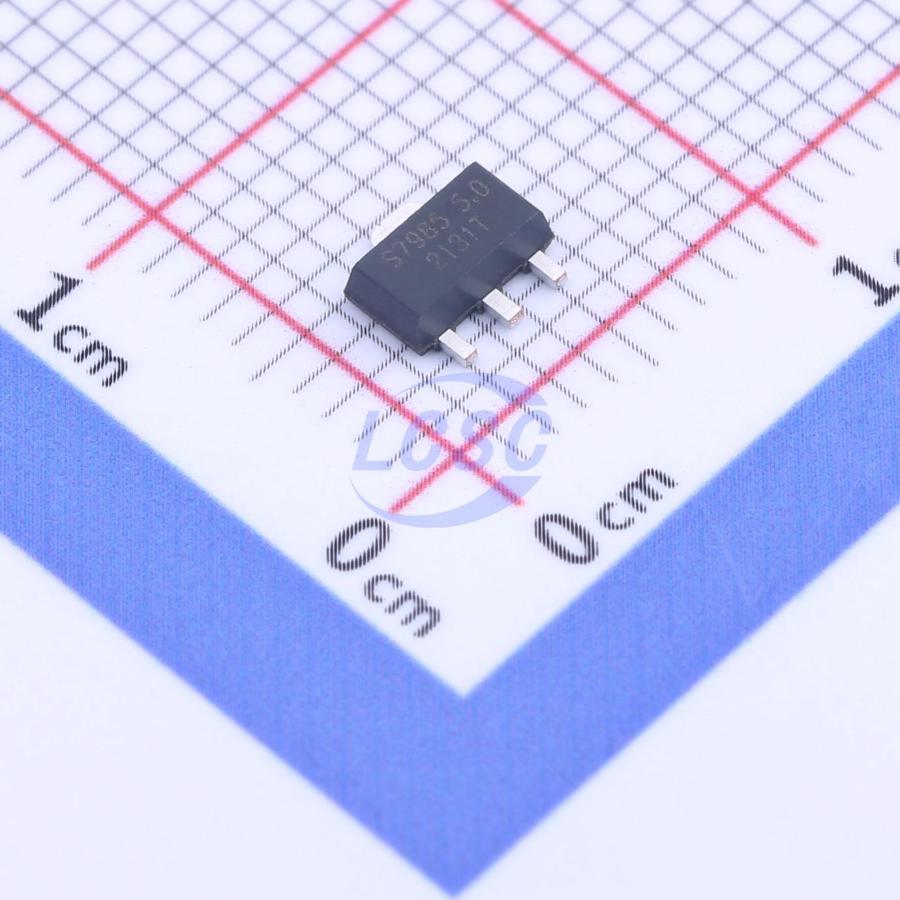

SSP7985P50PR
5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
60V、150mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7985P50PR
- Store part #
- C2965590
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,045 in stock
#C2965590
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.95 | ₹134.75 |
| 50+ | ₹21.15 | ₹1,057.50 |
| 150+ | ₹18.67 | ₹2,800.50 |
| 1,000+ | ₹15.57 | ₹15,570.00 |
| 2,000+ | ₹14.20 | ₹28,400.00 |
| 5,000+ | ₹13.36 | ₹66,800.00 |
5 × ₹26.95
₹134.75
excl. GST
₹159.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SSP7985P50PR
₹134.75 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
The SSP7985 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7985 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
Applications
- Battery-powered equipment
- Smoke detector and sensor
- Home Appliance
- Microcontroller Applications
Key features
- High input voltage: 60V
- Low temperature coefficient
- Built-in current limiter
- High PSRR: 70dB at 1KHz
- Good Transient Response
- Large Output Current: 150mA
- Low Quiescent Current: 2μA
- Output voltage accuracy: tolerance ± 2%
- Integrated Short-Circuit Protection
- Dropout Voltage: 70mV@10mA/700mV@100mA
- High Input Voltage Rating: Up to 80V
- Packages: SOT89-3, SOT23-3 and SOT23-5
