Siproin

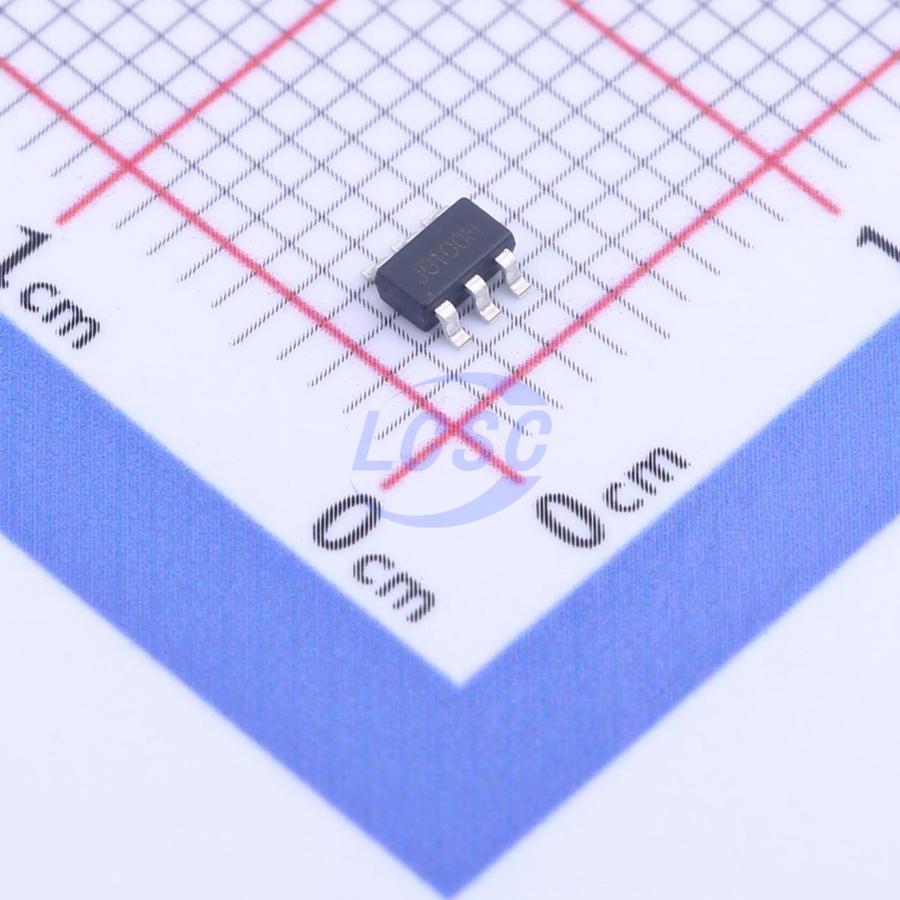

SSP8011A-A

Capacitive Touch No 1 SOT-23-6 Sensor, Capacitive Touch

SOT-23-6RoHSActive

Single-channel touch key detection chip

Manufacturer: Siproin
Manufacturer part #: SSP8011A-A
Store part #: C2965585
Package / case: SOT-23-6
Category: Sensor, Capacitive Touch
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,575 in stock

#C2965585

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹19.37	₹96.85
50+	₹15.41	₹770.50
150+	₹13.44	₹2,016.00
500+	₹11.96	₹5,980.00
3,000+	₹10.32	₹30,960.00
6,000+	₹9.72	₹58,320.00

Quantity (min 5, multiples of 5)

5 × ₹19.37

₹96.85

excl. GST

₹114.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SSP8011A-A

₹96.85 for 5 + GST

Specifications

Features: Capacitive Touch
Operating Temperature: -20℃~+70℃
Whether the Lock: No
Number of Channels: 1
Voltage - Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The SSP8011 is a low- power single- key touch sensor IC. The operating mode is divided into Normal mode and Low Power mode. Button mode or Switching mode output can be choosed, and the output level mode is optional.

Applications

Household appliance
Intelligent instrument

Key features

Single- key Touch Sensor IC
Operation Voltage: 2.2V - 5.5V
Operation Current: Normal mode = 2.0μA / Low Power mode = 1.3μA @VDD = 3V
Operating mode divided into Normal mode and Low Power mode. Enter Low Power mode after no activity for 12 second
Response Time: Normal mode < 70mS; Low Power mode < 140mS
Sensitivity adjusted by Key pin capacitor (0pF ~ 30pF)
Selectable output level: Active High or Active Low or Open Drain Output
Selectable output mode: Button mode or switching mode
Key press timeout reset: 9 second or No Limit. Different IC models are available
SOT23- 6,DFN- 6 package
